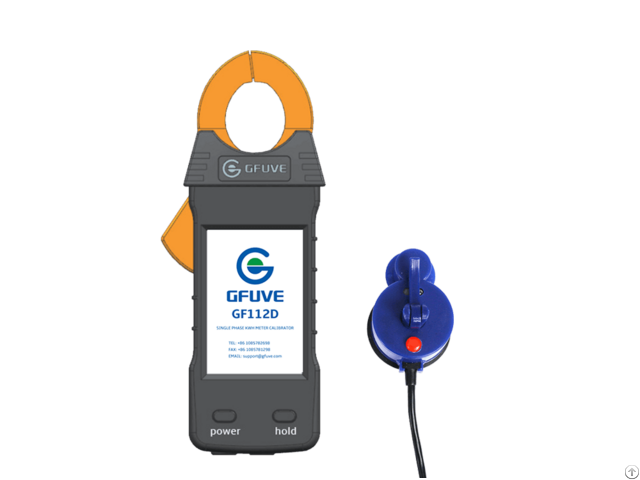

Gf112d Single Phase Electricity Meter Tester - China

GF112D is a single-phase handheld electronic meter test unit in accuracy class 0.1or 0.2, used for testing single phase electricity meters error on site.

Wide measurement range from 1mA to 120A and 0 to 300V, and also can be used to test alternating current parameters - voltage, current, active power, reactive power, apparent power, harmonics, phase angle, power factor, frequency, energy etc.

FUNCTIONS

■ Rotary field indication; ■ Vector diagram display; ■ External thermal-printer; ■ 4-quadrant measurement; ■ Display of vector diagram; ■ Energy meter counters testing; ■ Testing of energy and power registers; ■ Testing of 1P2W electricity meter error; ■ Testing of 1P2W inductive energy meter error; ■ Testing of 1P2W mechanical energy meter error; ■ Oscilloscope function display current & current wave; ■ Frequency, phase angle and power factor measurement; ■ Harmonic analysis for voltage and current up to the 63th harmonics; ■ Power and energy measurement of active, reactive and apparent energy; FEATURES

■ Accuracy class 0.2; ■ Smart optical sampler; ■ 3.5 inch color touch TFT LCD; ■ Easy and user friendly operation; ■ Lithium batteries can be replaced; ■ Storage 5000 groups calibrate data; ■ The best light weight meter test set; ■ With PC software, export test report; ■ Automatic compensation for current clamp; ■ Unique long-term and temperature stability; ■ With bluetooth & USB communication port; ■ Wide measuring range 0 -300V /0.001-120A; ■ The Li-battery can work 48 hours continuously; ■ One screen displays all the measured parameters; ■ The meter and current clamp have Integration design;

Company Contact:

• Posted By: GFUVE

• Phone: 15910663251

• Address: Guanzhuang Dongfang Huarui, Chaoyang District, Beijing, Beijing , Beijing , China

• Email:

• Website: https://www.gfuvegroup.com

• Business Description: GFUVE GROUP was established in 2005 - It is a high-tech enterprise group company integrating design, production, manufacturing and sales.

  GFUVE GROUP have five subsidiary and one Technology R & D center.

  GFUVE mainly produces energy meter test equipment, CT PT analyzer, relay tester, three phase standard power source, reference energy meter, electrical calibrator, power quality analyzer, Power transformer test equipment, circuit breaker tester, high voltage ammeter recorder, High voltage test set, EV & Recharging testing equipment, substation IEC61850 test software, intelligent digital power meter and transducer, current probe & current sensor, split core ct, instrument current transformer & voltage transformer, micro ct & pt, energy meter relay parts and handheld terminal etc.
