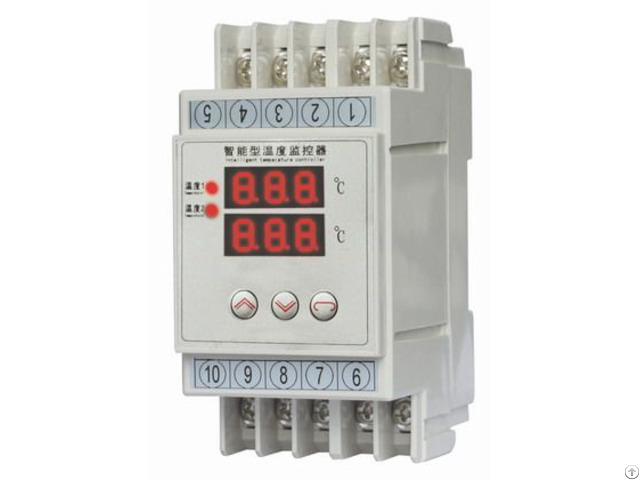

Din Rail S W2 K2 Temperature Controller - China
price: 50.00 Dollar US$
Intelligent temperature controller with completed
FUZZY algorithm provides very precise of
temperature monitor.
FUZZY algorithm control fan
or heater to maintain sensible & latent capacity
follows temperature/humidity curve by
automatically.
Display unit can show environment temperature
and humidity as per configure by user.
The user
also can adjust environment condition very easily.
Function & Feature
·DIN rail mounting Temperature Controller
·Indication and control accuracy 0.1℃, high measurement
·Heat/Cool control and PID control mode
·All settings except time maintained permanently in non-volatile memory until changed by user
·Built-in digital filter reduce interfere
·Self calibration technology, keep stabilization
·LED display show the data, prevent dazzle, highly visible display
·Simple 4-Button user interface
·Switching power supply and low consumption.
·Use large capacity relay
Specification
Power supply:
110/220VAC
(others on request) 24/48DC
Voltage range 80~110% rated voltage
Power consumption <5VA
Display:
2 line 7-segment LED display, 4 digital available
Display scale 1 digital after decimal point
Company Contact:
- Posted By: Chongqing Blue Jay Technology Co., Ltd
- Phone: (+0086) 023-67628702
- Address: JingYu Avenue No.153, Building 3A-13-25, Jiangbei District , 400020, Chongqing, P.R.China, chongqing , chongqing , China
- Email:
- Website: https://cqbluejay.com
Published date: July 24, 2018
- Business Description: Application:
The MCM1000 Series provides a compact and robust metering solution, enable reliable monitoring of building electrical loads with a low installation cost-per-point by combining sub-metering.
The unit performs real-time metering, measures energy consumption, multitariff time-of-use (TOU) and monitors power quality for max 18 channel circuits for single phase or 6 channel for three phase circuits.
Advanced communications options including Modbus via RS485, I/O communications provide for extensive reliable data exchange.
Multiple
units can be connected together to meter unlimited number of circuits.
The versatility of MCM1000 meters are ideal for multi-tenant or departmental metering applications within office towers, condominiums, apartment buildings, shopping centers and other multi-user environments.
Features:
·Class 0.5 basic parameter and class 1 for active energy
·6 channels three phase or 18 channel single phase metering
·Current measuring .
/5 or .
/1 A (optional 333mV)
·Standard 35mm - 8 module DIN rail mounting
·Provide RS-485 MODBUS-RTU Communications
·Optional 6DI / 2DO for signal detect and remote control
·Optional external connection LCD screen, 96*96mm panel mount
·Optional TOU record for each monitor channel
·Accept customization design
