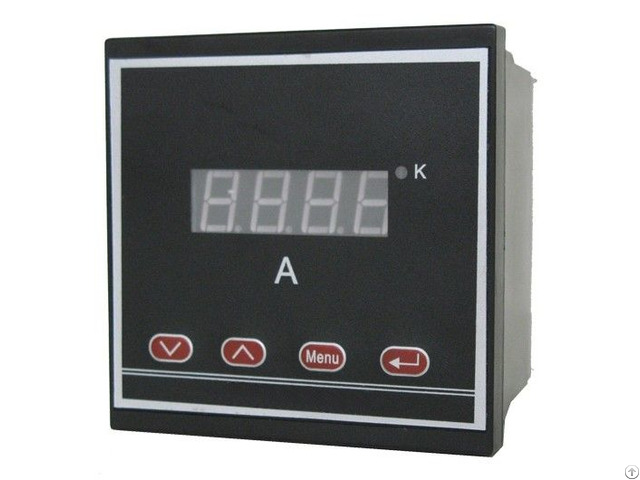

Digital Single Phase Current Meter - China

Especially developed for indication and supervision of

the single-phase circuit, replaces an analogical

ammeter, reducing installation manpower and

optimizing the used one of spaces in the panel.

Ideal for protection of single-phase networks is

monitored and generally to own alarm superior and

inferior.

Protection of the parameters of programming

by password.

Specifications

Current inputs (TRMS) Communication (Option)

CT primary 10 000 A Link RS485

CT secondary 1 and 5 A Type 2 .

3 wires half duplex

Sampling Rate 2 per sec Protocol Modbus RTU mode

Resolution 0.001 to 1, depending on the range MODBUS speed 4800/9600bauds

Burden < 0.5VA, < 0.2VA in 20A Analog Outputs (Option)

Auxiliary power supply Number of outputs 1 channel

AC voltage DC/AC 85~265 ± 30 % Type Isolated

Frequency 50 / 60 Hz Range 0 / 4 .

20 mA or 0-5V

Consumption < 10 VA Maximum current 30 mA

Front panel Alarm Outputs (Option)

Display Type Red LED Super Bright Display Number of relays 1 channel

Maximum Display 9999 Counts Type Passive nodes

Polarity Indication "-" is indicated for negative input(option) Weight

Case / Housing Material Approximate 250~400g

Installation Panel mounting Environment

Terminal Block Thermoplastic with Tin Plated Brass Terminal Calibration 27°C ± 5°C

Dielectric Strength Operation 0 to 50°C, RH < 70%

2.5 kV at 50Hz for 1 min Storage -10 to 60°C, RH < 70%
