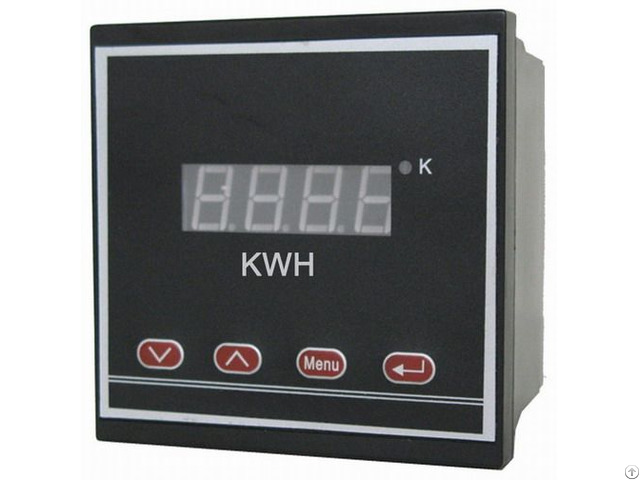

Digital Dc Energy Meter Pm Panel Mounting - China

BLUE JAY DC energy meters with a DC signal conditioner board

combine high accuracy with high read rate and a wide range of

isolated output options for computer interface and control.

DC energy meter operation provides four full-scale current

ranges 5.00A with 25mA resolution.

The 5.000 A range measures

can connect current shunt to expand the measure range.

Voltage

ranges from 5V with 25 mV resolution to 600.0 V with 5V

resolution.

All current and voltage ranges are factory calibrated, without recalibrating the meter.

External current shunts are fully supported.

Scaling is 75 mV - 5A, more than 5A will set transformer ratio

from the front panel of the meter.

The scalable readout is four full digits up to 9, 999 counts.

Shunt is

remotely located for direct sensing.

This allows the current carrying wires to take a more direct path to the

large current and alleviates the need to route them through the meter case.

Features

·Measures Amps to or from a battery bank, energy source or load.

(Both positive or negative flow)

·All ranges factory calibrated

·Accurate to 0.5%

·3-1/2 digit resolution to ±9, 999 for readout in KWH

·Up to 60 conversions per second

·Universal AC power, 85-264 Vac

Options:

·Serial communications: RS485/RS232 Interface, RS485-to-Ethernet converter

·Low voltage power: 10-48 Vdc or 12-32 Vac

·Relay outputs: 1 or 2 relays

·Analog output: isolated 4-20 mA, 0-20 mA, 0-10V

Company Contact:

• Posted By: Chongqing Blue Jay Technology Co., Ltd

• Phone: (+0086) 023-67628702

• Address: JingYu Avenue No.153, Building 3A-13-25, Jiangbei District , 400020, Chongqing, P.R.China, chongqing , chongqing , China

• Email:

• Website: https://cqbluejay.com

• Business Description: Application:

  The MCM1000 Series provides a compact and robust metering solution, enable reliable monitoring of building electrical loads with a low installation cost-per-point by combining sub-metering.

  The unit performs real-time metering, measures energy consumption, multitariff time-of-use (TOU) and monitors power quality for max 18 channel circuits for single phase or 6 channel for three phase circuits.

  Advanced communications options including Modbus via RS485, I/O communications provide for extensive reliable data exchange.

  Multiple

  units can be connected together to meter unlimited number of circuits.

  The versatility of MCM1000 meters are ideal for multi-tenant or departmental metering applications within office towers, condominiums, apartment buildings, shopping centers and other multi-user environments.

  Features:

  ·Class 0.5 basic parameter and class 1 for active energy

  ·6 channels three phase or 18 channel single phase metering

  ·Current measuring .

  /5 or .

  /1 A (optional 333mV)

  ·Standard 35mm - 8 module DIN rail mounting

  ·Provide RS-485 MODBUS-RTU Communications

  ·Optional 6DI / 2DO for signal detect and remote control

  ·Optional external connection LCD screen, 96*96mm panel mount

  ·Optional TOU record for each monitor channel

  ·Accept customization design
