BJ195DCE DC Energy Meters are mainly used to

measure the energy consumption for different load

connected to it.

DC energy consumption for the loads

like telecom BTS (Base Transceiver Stations), solar

panel and any applications need DC power parameter

monitor.

The meter calculated energy data by

connecting appropriate shunts in the loads circuit.

The

voltage drop across shunt is fed to DC energy meter

input terminals.

The millivolts across shunts are

converted into current depending upon the shunt ratio

used in circuit.

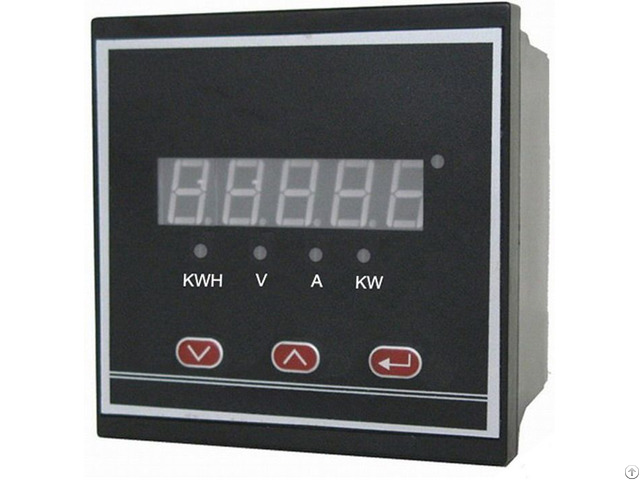

The DC Energy Meter is a micro-controller based product that measures DC voltage and

currents, power, energy data and displays them on a 7-Segment five digital LED display

with auto scrolling.

Blue Jay can set the parameters of DC energy meter from the

customer request.

As the world wide aim is necessary to reduce the power consumption and optimization the

use of available power/energy supplies.

The application of smart energy meters are seen

as ideal solutions by providing monitoring the energy consumption in an accurate manner.

Technical Specification:

Max.

input voltage : 72 volts DC;

Max.

output current each channel : 400Amps DC;

The energy consumed by each channel is stored in non volatile memory;

It displays the energy consumed since last reset for each channel.

It also displays the

current by each channel in Amps;

Total 5 digit 7-segment LED display;

Accuracy: < 1%;

Mounting: panel mount, Indoor.
