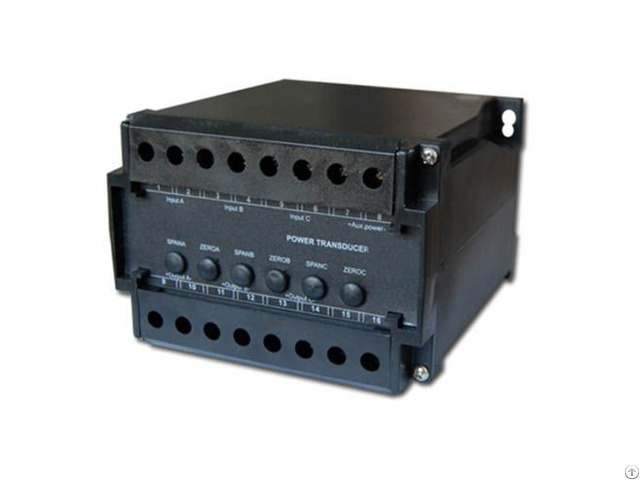

Combination Ac Power Transducer Bj Qpwk - China

Function & Feature

1 - QPWK transducer converts ac current and voltage signals into a load independent dc signal

proportional to active power (watt) and reactive power (var).

Two output signals combination in one

transducer.

2 - The current and voltage signals are passed into the circuit via precision instrument transformers to

provide galvanic isolation between the input circuits and the transducer circuitry.

Each pair of current

and voltage signals is mathematically multiplied together to produce a product signal proportional to

true power and independent of wave shape and phase angle.

3 - This var transducers to be connected to a variety of measuring and control devices and systems, such

as analogue meters, PLC, computers, data loggers, digital instruments and telemetry systems.

4 - Snap on to DIN rail 35 x 7.5 mm complies with DIN-EN 50022 BS 5584

Company Contact:

• Posted By: Chongqing Blue Jay Technology Co., Ltd

• Phone: (+0086) 023-67628702

• Address: JingYu Avenue No.153, Building 3A-13-25, Jiangbei District , 400020, Chongqing, P.R.China, chongqing , chongqing , China

• Email:

• Website: https://cqbluejay.com

• Business Description: Application:

  The MCM1000 Series provides a compact and robust metering solution, enable reliable monitoring of building electrical loads with a low installation cost-per-point by combining sub-metering.

  The unit performs real-time metering, measures energy consumption, multitariff time-of-use (TOU) and monitors power quality for max 18 channel circuits for single phase or 6 channel for three phase circuits.

  Advanced communications options including Modbus via RS485, I/O communications provide for extensive reliable data exchange.

  Multiple

  units can be connected together to meter unlimited number of circuits.

  The versatility of MCM1000 meters are ideal for multi-tenant or departmental metering applications within office towers, condominiums, apartment buildings, shopping centers and other multi-user environments.

  Features:

  ·Class 0.5 basic parameter and class 1 for active energy

  ·6 channels three phase or 18 channel single phase metering

  ·Current measuring .

  /5 or .

  /1 A (optional 333mV)

  ·Standard 35mm - 8 module DIN rail mounting

  ·Provide RS-485 MODBUS-RTU Communications

  ·Optional 6DI / 2DO for signal detect and remote control

  ·Optional external connection LCD screen, 96*96mm panel mount

  ·Optional TOU record for each monitor channel

  ·Accept customization design
