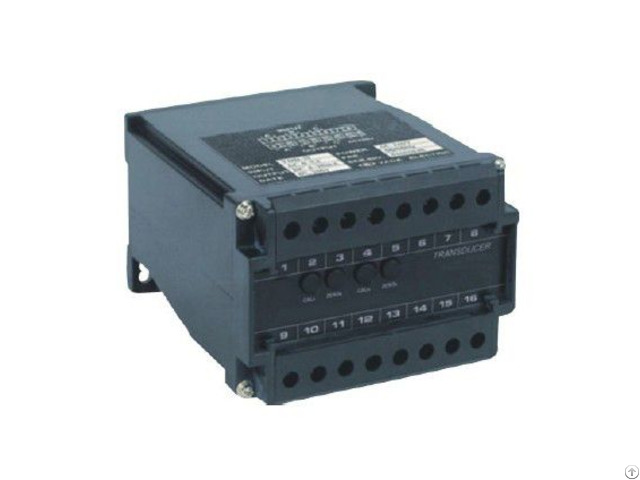

Ac Re Active Power Transducer Bj Qpk - China

Function & Feature

1 - QPK transducer converts ac current and voltage signals into a load independent dc signal proportional

to reactive power (vars).

This signal is capable of driving a number of independent instruments.

2 - The current and voltage signals are passed into the circuit via precision instrument transformers to

provide galvanic isolation between the input circuits and the transducer circuitry.

Each pair of current

and voltage signals is mathematically multiplied together to produce a product signal proportional to

true power and independent of wave shape and phase angle.

3 - These var transducers to be connected to a variety of measuring and control devices and systems, such as analogue meters, PLC, computers, data loggers, digital instruments and telemetry systems.

4 - Snap on to DIN rail 35 x 7.5 mm complies with DIN-EN 50022 BS 5584

Specifications

Inputs:

Nominal input 1 or 5 Amp C.T. connected

110V, 230V, 240V, 400V, 415V ac +/-20%

Power consumption

<1 VA voltage

<0.2 VA current

Overload capacity

Current: 2 times continuous, 30 times /1s .

Voltage: 2 times continuous.

Frequency range 50Hz, 60Hz

Output:

Standard nominal outputs 4~20mA, 0-5V, (others on request) 0-20mA, 5-10V

0-10V

Maximum load <750 F (0-20mA, 4-20mA)

>2000 F (voltage output)

Ripple <1% peak to peak

Response time

<250ms 0-90%

<500ms 0-99%

Accuracy:

Class ±0.2 % / ±0.5 %complying with IEC 688

Accurate range 0 - 120% I

Frequency influence <0.02% per Hz

Load influence <0.25% of full span for specific load range

Auxiliary Supply:

48V, 110V, 230/240V AC 20%, 1.5VA

24V, 48V, 110V DC 20% 2W

Isolation Galvanic isolation between input, output circuits and auxiliary supply

Test voltage 2KV RMS 50Hz for 1 minute

impulse 4KV 1.2/50Lsec waveform

Temperature

Operating -10~55C

Storage -40~70C, 20 ~ 93%RH ; Noncondensing
