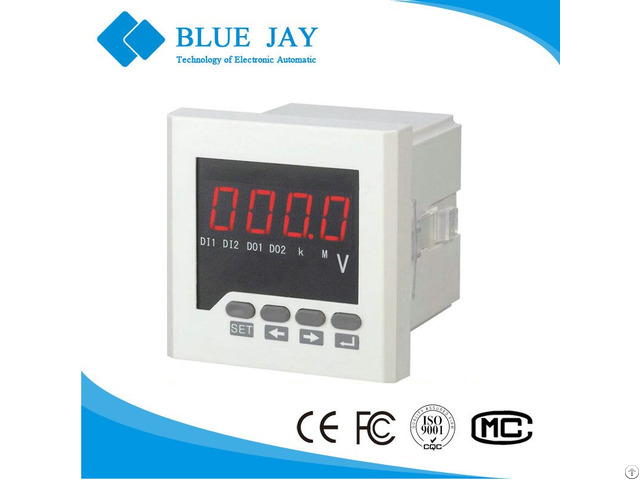

72x72mm Be 72 Av Ac Led Single - China

characteristics ♦High precision measurement of single phase AC voltage or DC voltage

♦Provide the digital tube display, local data query

♦Programmable voltage ratio

♦Support for RS-485 communication, Modbus-RTU protocol

♦Auxiliary power supply: AC/DC 80V~270V, AC220V, AC380V, AC100V, DC48V, DC 24V

♦A variety of shapes to meet the different requirements of the cabinet body electric circuit Signal input

♦Connection mode of single phase

♦Rated voltage of AC 57.7V, AC 100V, AC 220V, AC 380V, DC 2V, DC 20V, DC 200V, DC600V

♦Over load 1.2 times ( Continued ), 2 times / second ( instantaneous )

♦Power <1VA/ phase

♦Impendance >300KΩ

♦The frequency: 45~65Hz or DC Function module

♦Communication interface 1 way RS-485 communication, Modbus-RTU protocol

♦Baud rate: 1200~9600bps, the default 2400bps

♦Switch input support 2 stem node input

♦The switch output support 2 relay output, capacity: AC 250V/5A, DC 30V/5A

♦Transmission output support 1 analog output: 0/4~20mA or 0~5/10V 2 - Synoptic Adopting A.

C .

Sampling this series meter can measure electrical parameters of the net such as current, voltage, frequency etc.

and set ratio through key on panet .

Company Contact:

• Posted By: Chongqing Blue Jay Technology Co., Ltd

• Phone: (+0086) 023-67628702

• Address: JingYu Avenue No.153, Building 3A-13-25, Jiangbei District , 400020, Chongqing, P.R.China, chongqing , chongqing , China

• Email:

• Website: https://cqbluejay.com

• Business Description: Application:

  The MCM1000 Series provides a compact and robust metering solution, enable reliable monitoring of building electrical loads with a low installation cost-per-point by combining sub-metering.

  The unit performs real-time metering, measures energy consumption, multitariff time-of-use (TOU) and monitors power quality for max 18 channel circuits for single phase or 6 channel for three phase circuits.

  Advanced communications options including Modbus via RS485, I/O communications provide for extensive reliable data exchange.

  Multiple

  units can be connected together to meter unlimited number of circuits.

  The versatility of MCM1000 meters are ideal for multi-tenant or departmental metering applications within office towers, condominiums, apartment buildings, shopping centers and other multi-user environments.

  Features:

  ·Class 0.5 basic parameter and class 1 for active energy

  ·6 channels three phase or 18 channel single phase metering

  ·Current measuring .

  /5 or .

  /1 A (optional 333mV)

  ·Standard 35mm - 8 module DIN rail mounting

  ·Provide RS-485 MODBUS-RTU Communications

  ·Optional 6DI / 2DO for signal detect and remote control

  ·Optional external connection LCD screen, 96*96mm panel mount

  ·Optional TOU record for each monitor channel

  ·Accept customization design
