27va Dc 0 100v 50a 2 In 1 Mini Digital Ammeter And Voltmeter With Red Blue Color Led Dual Display - China

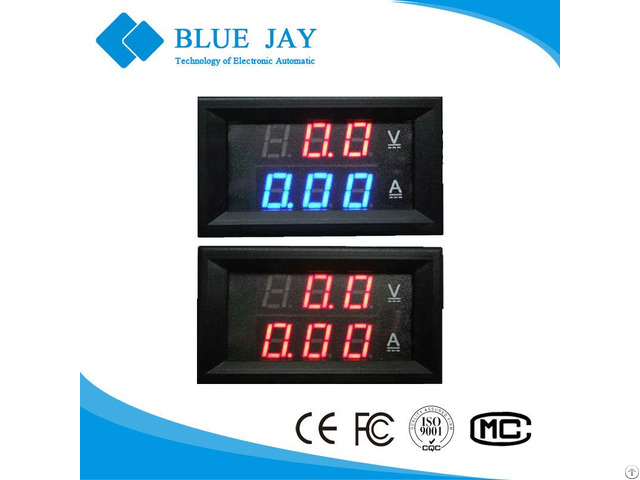

27VA is a Volt Amp Meter dual display ammeter and voltmeter by its 0.28 inch LED panel.

its widely applicate forautomotive / electric cars / motorcycles battery monitoring or other products voltage current measurement Features:

-Operating voltage: DC 4.5 ~ 30V - Measure voltage: DC 0 ~ 100V - Minimum resolution(V): 0.1V - Measure current : 50A (require external shunt) - Minimum resolution(A): 0.1A - Operating Current: <20mA - Display: three 0.28" LED digital tube

- Display color: Red and Blue (two-color display) - Refresh rate: about 500mS / times - Measure accuracy: 1% (+_1 digit) - Operating temperature: -10 to 65 C

- Operating Humidity: 10 to 80% (non-condensing)

Company Contact:

• Posted By: Chongqing Blue Jay Technology Co., Ltd

• Phone: (+0086) 023-67628702

• Address: JingYu Avenue No.153, Building 3A-13-25, Jiangbei District , 400020, Chongqing, P.R.China, chongqing , chongqing , China

• Email:

• Website: https://cqbluejay.com

• Business Description: Application:

  The MCM1000 Series provides a compact and robust metering solution, enable reliable monitoring of building electrical loads with a low installation cost-per-point by combining sub-metering.

  The unit performs real-time metering, measures energy consumption, multitariff time-of-use (TOU) and monitors power quality for max 18 channel circuits for single phase or 6 channel for three phase circuits.

  Advanced communications options including Modbus via RS485, I/O communications provide for extensive reliable data exchange.

  Multiple

  units can be connected together to meter unlimited number of circuits.

  The versatility of MCM1000 meters are ideal for multi-tenant or departmental metering applications within office towers, condominiums, apartment buildings, shopping centers and other multi-user environments.

  Features:

  ·Class 0.5 basic parameter and class 1 for active energy

  ·6 channels three phase or 18 channel single phase metering

  ·Current measuring .

  /5 or .

  /1 A (optional 333mV)

  ·Standard 35mm - 8 module DIN rail mounting

  ·Provide RS-485 MODBUS-RTU Communications

  ·Optional 6DI / 2DO for signal detect and remote control

  ·Optional external connection LCD screen, 96*96mm panel mount

  ·Optional TOU record for each monitor channel

  ·Accept customization design
