194y Electrical Power Monitor Three Phase For Panel Mounting - China

Description

Features

Application

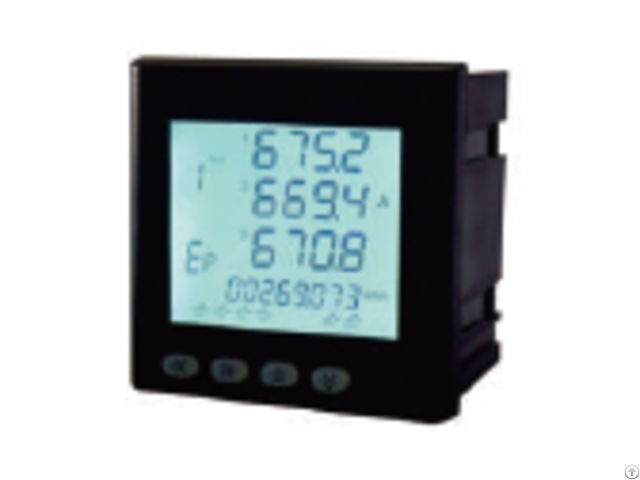

194Y

Electrical Power Monitor

Three phase for panel mounting

·Class 0.5S power and energy

·Current measuring .

/5 or .

/1 A

·Backlit LCD display

·Expandable input / output modules (up to 3

modules)

·With RS-485 Modbus/RTU Communications

·With 2 channel Pulse Output (PO) for active

energy&reactive energy counting

·Optional 1 channel Analog Output (AO)

·Optional 4 channel Digital Input (DI) and 2

channel Digital Output (DO)

·Record and read multi- tariffs ratio, Up to 3

months

·ITF Technology: galvanic insulation

protection inputs outputs

·Universal series power supply (85-

265VAC/DC)

·Applied to the control of general switch

boards and low, medium and high

voltage connection points.

·Harmonic analyze.

·Remote data reading.

·Alarm station with voltage-free digital

inputs.

Company Contact:

• Posted By: Chongqing Blue Jay Technology Co., Ltd

• Phone: (+0086) 023-67628702

• Address: JingYu Avenue No.153, Building 3A-13-25, Jiangbei District , 400020, Chongqing, P.R.China, chongqing , chongqing , China

• Email:

• Website: https://cqbluejay.com

• Business Description: Application:

  The MCM1000 Series provides a compact and robust metering solution, enable reliable monitoring of building electrical loads with a low installation cost-per-point by combining sub-metering.

  The unit performs real-time metering, measures energy consumption, multitariff time-of-use (TOU) and monitors power quality for max 18 channel circuits for single phase or 6 channel for three phase circuits.

  Advanced communications options including Modbus via RS485, I/O communications provide for extensive reliable data exchange.

  Multiple

  units can be connected together to meter unlimited number of circuits.

  The versatility of MCM1000 meters are ideal for multi-tenant or departmental metering applications within office towers, condominiums, apartment buildings, shopping centers and other multi-user environments.

  Features:

  ·Class 0.5 basic parameter and class 1 for active energy

  ·6 channels three phase or 18 channel single phase metering

  ·Current measuring .

  /5 or .

  /1 A (optional 333mV)

  ·Standard 35mm - 8 module DIN rail mounting

  ·Provide RS-485 MODBUS-RTU Communications

  ·Optional 6DI / 2DO for signal detect and remote control

  ·Optional external connection LCD screen, 96*96mm panel mount

  ·Optional TOU record for each monitor channel

  ·Accept customization design
