194e 9s4 Multi Fcuntion Power Meter Three Phase For Panel Mounting - China

Introduction BJ-194 series are high-end multifunction power meter manufactured by Blue Jay Technology Co., Ltd. It is the ideal choice for monitoring and controlling of power distribution systems.

With its four direct access keys and LED/LCD displays, helps you use all the parameters in 3P3W or 3P4W LV installation.

It can be used as a data gathering device for an intelligent Power Distribution System or Plant Automation System.

All monitored data is available via a digital RS485 communication port running MODBUSRTU Protocol.

Ethernet communication is also options.

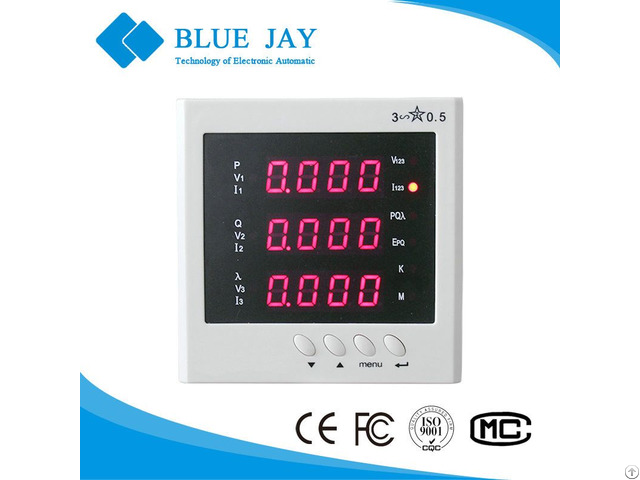

194E-9S4 Multi-fcuntion Power Meter Three phase for panel mounting Main Features ·Class 0.2 or 0.5 power and energy

·Current measuring .

/5 or .

/1 A

·RS-485 MODBUS-RTU Communications

·Expandable input / output modules (up to 3 modules)

·ITF Technology: galvanic insulation protection inputs outputs.

·Clear and large character LCD Screen display with white back light Wide environmental temperature endurance.

Display Load percentage, 4 quadrants power and load nature

·User free to configure max 2 channel alarm output(DO), 4 channel digital signal input(DI) and 1 channel linear output(AO)

·Can record and read multi- tariffs ratio, Up to 3 months(194Z, 194Y

series only)

Company Contact:

• Posted By: Chongqing Blue Jay Technology Co., Ltd

• Phone: (+0086) 023-67628702

• Address: JingYu Avenue No.153, Building 3A-13-25, Jiangbei District , 400020, Chongqing, P.R.China, chongqing , chongqing , China

• Email:

• Website: https://cqbluejay.com

• Business Description: Application:

  The MCM1000 Series provides a compact and robust metering solution, enable reliable monitoring of building electrical loads with a low installation cost-per-point by combining sub-metering.

  The unit performs real-time metering, measures energy consumption, multitariff time-of-use (TOU) and monitors power quality for max 18 channel circuits for single phase or 6 channel for three phase circuits.

  Advanced communications options including Modbus via RS485, I/O communications provide for extensive reliable data exchange.

  Multiple

  units can be connected together to meter unlimited number of circuits.

  The versatility of MCM1000 meters are ideal for multi-tenant or departmental metering applications within office towers, condominiums, apartment buildings, shopping centers and other multi-user environments.

  Features:

  ·Class 0.5 basic parameter and class 1 for active energy

  ·6 channels three phase or 18 channel single phase metering

  ·Current measuring .

  /5 or .

  /1 A (optional 333mV)

  ·Standard 35mm - 8 module DIN rail mounting

  ·Provide RS-485 MODBUS-RTU Communications

  ·Optional 6DI / 2DO for signal detect and remote control

  ·Optional external connection LCD screen, 96*96mm panel mount

  ·Optional TOU record for each monitor channel

  ·Accept customization design
