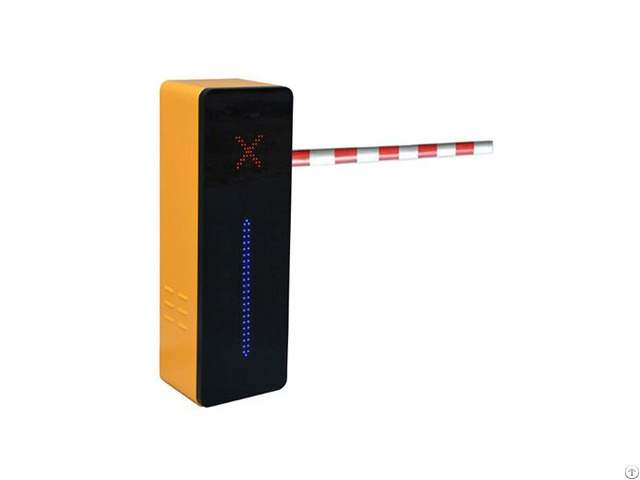

Vehicle Access Control Barrier Gate Jddz 9 - China

DC24V brushless motor digital vehicle access control barrier gate, gate barrier system is an efficinet vehicle access control solution for controlling vehicle access Vehicle access control barrier gate JDDZ-9 is an efficinet vehicle access control solution for controlling entry of authorized resident vehicles at safe pre-determined time intervals, coming with compact and stylish design for restrict areas with high traffic flow.

The combination of the advanced digital DC24V brushless motor and a planetary gearing system with sinusoidal movement for a soft start and soft stop action, ensures a smooth elevation or lowering of the barrier arm, and avoiding bounce in the end position.

On the other hand, vehicle access control gate barrier JDDZ-9 provides variable speed 0.6~ 6 seconds for different boom length.

In general, each boom length is set to a standard operational speed but can be simply adjusted directly from control board to get a faster or slower speeds depending on the requirement.

Designed for both indoor and outdoor application, providing a rapid, reliable and smooth operational way with low noise and low power consumption, and flexibly integration various access control systems, vehicle access control barrier gate JDDZ-9 is generally used in commercial and industrial applications such as controlling access to parking lots and garages in large business complexes, airports and public facilities.

Vehicle Access Control Barrier Gate Featurers

1 - Speed 0.6 second up to 6 seconds depending on the settings

2 - Energy saving DC24V brushless motor gearbox

3 - Manual operation in the event of power failure

4 - Smooth and efficient operation

5 - Secure operation with safety devices

6 - Possibility of integration with any type of access control systems

7 - Slim profile; fits on narrow islands

8 - Environmentally durable cabinet

9 - User-friendly and optimum accessibility

10 - Easy installation and service Vehicle Access Control Barrier Gate Applications

Private and company premises

Industrial and hospital premises

Tunnels

Motorways

Public facilities

Shopping mall Vehicle Access Control Barrier Gate Parameters

Power Supply: AC220V/ AC110V±10%, 50/60hZ

Rated Power: 140W

Motor Type: DC 24V brushless digital motor Motor Speed 1500RPM

Open Time & Boom Length 1.0~1.2 seconds: 2.5 meter straight boom

1.5~2.0 seconds: 3.0 meter straight boom

2.0~2.5 seconds: 3.5 meter straight boom

2.5~3.0 seconds: 4.0 meter straight boom

3.0~3.5 seconds: 4.5 meter straight boom

3.5~4.0 seconds: 5.0 meter straight boom

4.0~4.5 seconds: 5.5 meter straight boom

5.0~6.0 seconds: 6.0 meter straight boom

Max 4.5 meter articulated boom

Noise: ≤60dB

Error Action: ≤0.0%

Interfaces: IR sensor, vehicle detector, RS485, open/ close/stop

Output: Relay output, max AC240V, 5A bearable

Life Cycle: 4.5 million times

Work Temperature: -35ºC~60ºC, Relative humidity: ≤90%, no condensation

Company Contact:

• Posted By: Jayda Industry Co., Limited

• Phone: +86-13548106515

• Address: Room 501, No.6, West 4th Alley, XingWei Village, FuYong Town, BaoAn District, ShenZhen , GuangDong , China

• Email:

• Website: https://www.jaydagate.com

• Business Description: Jayda Industry Company., Limited, a professional manufacturer of physical security solutions, supplies a comprehensive range of automatic car park barrier, waist height turnstile, optical / touchless turnstiles, automatic rising bollard, multi-zone door frame metal detector., etc.

  Jayda company has modern workshop covers an area of 3000m²+, advanced manufacturing facilities and introduced into strict quality control systems.

  In addition, we have more than 100 highly skilled staffs from management, manufacturing sector, logistics, technical team, engineering, sales team and after-sales center to ensure high quality products and the most professional service for global clients.

  We are focusing on innovation all the time and continuing to invest on the development of the art-of-the-state products and service for global clients, and our products have exported to more than 50 countries or regions, including Viet Nam, Singapore, Malaysia, USA, UAE, Kenya, Russia, Qatar, Azerbaijan, Chile, Mexico, Brazil.

  We have established long-term cooperation with hundreds of oversea clients, and our business is snowballing in the global markets all the time.

  Jayda always insists on the philosophy of ‘customer first all the time, and continuing to invest on the development of update intelligent products and imporove product quality and service ability for global clients.

  As a professional security solution provider with 15+ year experience, we have various smart products for different applications and professional team to fully support you at every step.

  Please feel free to contact us if you are interested in us or our products.
