2W Isolated Single & Dual Output DC/DC Converters

part No.

: TPH0505S

power: 2W

package: SIP

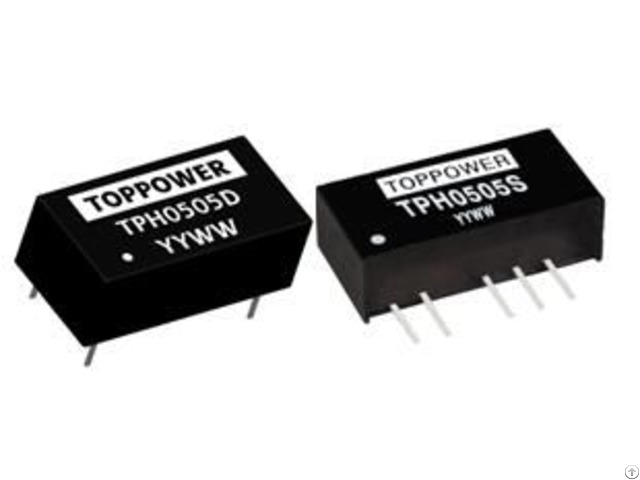

Input voltage: 5V, Output voltage: ±5V, The TPH series are miniature, isolated 2W DC/DC converters in a SIP and DIP package.

They offer the ideal solution in many space critical applications for board level power distribution.

The internal SMD construction makes it possible to offer a product with high performance at low cost.

The series offers smaller size, improved efficiency, lower output ripple noise and 3KVDC isolation.

RoHS compliant Efficiency up to 86% Power density up to 1.44W/cm3

Operating temperature: -40C to 85C Dual output from a single input rail UL 94V-0 package material

Power sharing on output 3KVDC isolation Industry standard pinout

Parameter Conditions

Voltage range 5V input 4.5 5 5.5 V

Parameter Conditions Min.

Max.

Units

Rated Power TA=-40°C to 85°C 2 W

Voltage Set Point Accuracy TPH0505D/S -5 7.5 %

Voltage Set Point Accuracy All other types -5 5 %

Line regulation High VIN to low VIN 1.2 %

Load Regulation(10% load to rated load) 5V output 10 %

Parameter Conditions Min.

Typ.

Max.

Units

Isolation test voltage Flash tested for 1 second 3000 VDC

Resistance Viso= 1000V 1 G

Short-circuit protection 1 second

Lead temperature 1.5mm from case for 10 seconds 300

Internal power dissipation 300mW

Input voltage Vin, TPH05 7V
