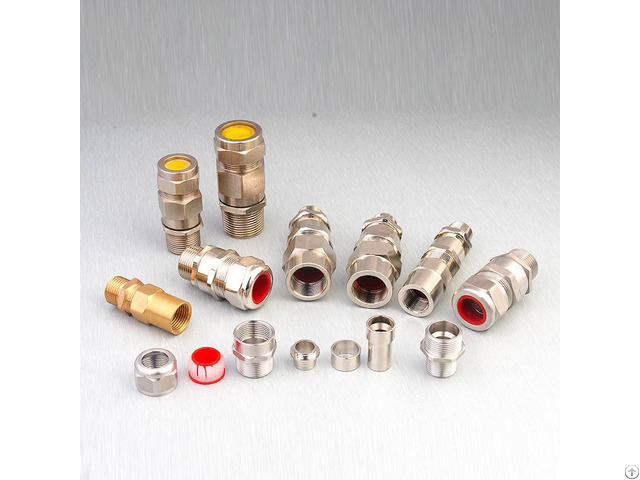

Single Sealed Ex Cable Wiring Qw7 Series - China
price: 0.06 Dollar US$
Contact Person： AXL Chow Skype：hany3128 Mobile / WhatsApp：+86-1312520716 3 Fax：+86-0577-27862035 Tel：+86-0577-27870230 Material: Stainless Steel304, 316L, H62 Cable: With packing seal Protection Class: IP66 Explosion Mark: Exd II Features: With quick installation, safety, reliability and other characteristics of good protection.
1 - It is Made of copper or stainless steel material; 2 - Cable is sealed with gasketing; 3 - With reliable installation, good protection and explosion-proof function; 4 - Isolating gasket tube in suitable for clamping and fixing steel wire knit of armored cable, it is cable core and enclosure gas sealing protection most be lP66 Function: Suitable for clamping and fixing various types of armored cable.
It is widely used for clamping oil exploitation, oil refining and chemical industry, military and other hazardous locations and sealed cable; It is applicable to explosive gas environment 1 zone, 2 zone places; It is suitable for places of combustible dust environment 20 zone, 21 zone 22 zone; It is suitable forⅡA, ⅡB, ⅡC explosive gas environment.
The Drawing: Code specification(D) Suitable for sealing cable diameter Thread Length (φ)max diameter Armored layer thickness Range(mm) Weight(kg)
In addition to armored cable diameter(outlet) Outside diameter of cable(wire) Cable outside diameter plional(inline) QW-7-EX-12 M20×1.5 NPT1/2” G1/2” ＜10.5 5.5-12 - 15 66 30 0.3-1.0 0.16
QW-7-EX-16 M20×1.5 NPT1/2” G1/2” ＜10.5 9.5-16 - 15 66 30 0.3-1.0 0.16
QW-7-EX-20.5A M20×1.5 NPT1/2” G1/2” ＜14.5 12.5-20.5 43263 15 68 30 0.3-1.0 0.15
QW-7-EX-20.5B M25×1.5 NPT3/4” G3/4” ＜14.5 12.5-20.5 43358 15 68 37 0.3-1.0 0.2
QW-7-EX-26A M25×1.5 NPT3/4” G3/4” ＜19.5 17-26 43358 15 73 37 0.4-1.2 0.2
QW-7-EX-26B M32×1.5 NPT1” G1” ＜19.5 17-26 14-22 19 77 45 0.4-1.2 0.23
QW-7-EX-33A M32×1.5 NPT1” G1” ＜25.5 22-33 14-22 19 81 45 0.4-1.4 0.21
QW-7-EX-33B M40×1.5 NPT1 1/4” G1 1/4” ＜25.5 22-33 19-28 19 81 55 0.6-1.9 0.3
QW-7-EX-41A M40×1.5 NPT1 1/4” G1 1/4” ＜31 28-41 24-33 19 88 55 0.6-2.2 0.26
QW-7-EX-41B M50×1.5 NPT1 1/2” G1 1/2” ＜31 28-41 29-41 19 88 65 0.8-2.3 0.36
QW-7-EX-52.5A M50×1.5 NPT1 1/2” G1 1/2” ＜37 36-52.5 29-41 19 96 65 0.8-2.3 0.35
QW-7-EX-52.5B M63×1.5 NPT2” G2” ＜37 36-52.5 38-52 19 96 77 0.9-2.4 0.47
QW-7-EX-65A M63×1.5 NPT2” G2” ＜49 46-65 38-52 19 114 82 0.9-2.4 0.45
QW-7-EX-65B M75×1.5 NPT2 1/2” G2 1/2” ＜55 46-65 38-58 19 114 93 0.9-2.4 3
QW-7-EX-78 M75×1.5 NPT2 1/2” G2 1/2” ＜64 57-78 47.5-74 19 119 110 0.9-2.4 2.9
QW-7-EX-88 M90×1.5 NPT3” G3” ＜75 68-88 19 119 121 0.9-2.8 4
QW-7-EX-103 M115×1.5 NPT4” G4” ＜90 83-103 19 125 137 0.9-2.8 4.9
Company Contact:
- Posted By: qiwei
- Phone: +8613125207163
- Address: Liushi Town, Yueqing, Zhejiang, Liushi Town, zhejiang , China
- Email:
Published date: June 17, 2019 - Modified date: June 17, 2019
- Business Description: Our company has more than ten years experience in manufacturing explosion-proof products.
experiences of explosion proof products, including ex-proof cable gland,EX cable pipe parts,
our explosion-proof connection box, explosion proof armored cable glands, double seal explosion
proof cable gland, single seal explosion proof cable gland, explosion-proof cable clamping
sealed gland, double sealed armored explosion proof cable glands are popular in international markets
