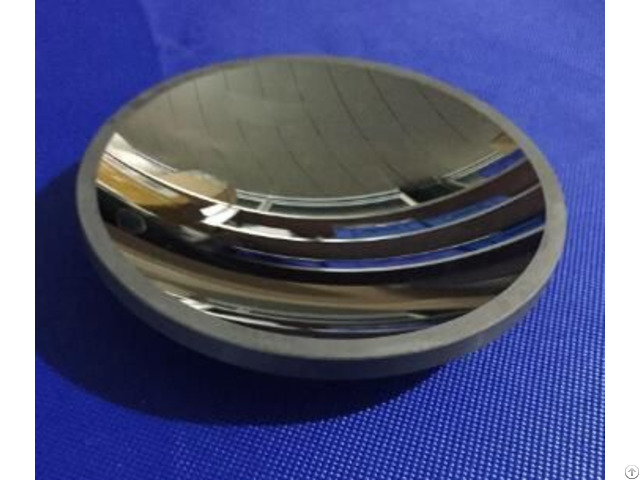

Precision Customized Silicon Aspheric Lenses - China
price: 110.00 Dollar US$
Diameter (mm): 25.00+0.00/-0.10 Center Thickness Tolerance (mm): +0.10 Base: Silicon (Si) effective aperture (%): 90.00 Aspheric graphic error (m RMS): 0.1 surface quality: 60-40 Center deviation (arc score): <10 Centering, ETD (micron): <21.8 Design Wavelength DWL (nm): 4000 Design Wavelength DWL (m): 4.0 Edge: Diamond Turned Shape: Meniscus Optimum Choice for Weight Sensitive IR Applications Silicon aspheric lens is a high performance, lightweight solution suitable for MWIR applications, and is an ideal substitute for expensive ZnSe lens and fragile Germanium lens.
Silicon aspheric lenses have excellent mechanical and thermal properties required to withstand adverse environmental effects, including temperature and pressure fluctuations.
Because silicon is a low-density material, these lenses are also very suitable for various weight-sensitive systems, such as applications in many defense fields.
lenses(@)intrinsiccrystal .
com
Company Contact:
- Posted By: intrinsic crystal technology co ltd
- Phone: +8615603394723
- Address: xihu road No1, qinhuangdao , Hebei , China
- Email:
Published date: September 19, 2019
- Business Description: ICC Company certificates: ISO9001: 2015, D&B: 53-09-098-3523&am p;SGS: QIP-AS1166146 .
Main business scope: crystal material, optical components polishing and optical coating service.
Quality documents: Material melt-data, ROHS&MSDS, COC, test report, coating witness and curve.
Optical crystal material-supply various shapes of specifications blank
CAF2: wavelength 193/248/308/400-8000nm; <111>, <100>, <110>; Size D3-300MM
MGF2: wavelength 121/157/193/248nm; <001>,<100>, <110>; Size D3-200MM
BAF2: wavelength 0.18-14.0um; <111>, <100>; Size D3-180MM
Silicon: optical/mirror/semiconduc tor grade；<100> <111>; Size D3-350MM
ZnSe: CVD method; laser/optical grade; Size D3-150MM
ZNS: CVD method; Standard/Multi spectral/dome grade; Size D3-150MM
LiF: VUV grade; <100> <110>; Size D3-160M
Optics fabrication-- glass and crystal material; Classic/high speed/double sides /CNC/ZYGO machines.
Optical flat window: circle/square; steps/drilled; Size D3-350MM; S/D 10-5& 1/10L@633nm
Spherical lens: single lens, achromatic doublet lens, Hemispherical /dome lens;S/D 20-10& 1/8L@633nm
Optical prism: wedge prism, triple prism, ATR prism;S/D 40-20& 1/4L@633nm
Aspherical: CNC and diamond turning machines, Ge/Si/optical fluoride/ glass etc
