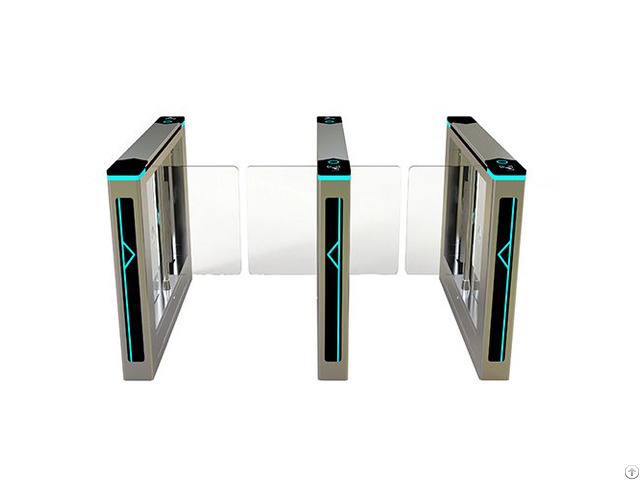

Outdoor Swing Gate Turnstile Jdbz 23 - China

Outdoor swing gate turnstile, optical swing barrier turnstile is designed with modern look modern bleding into the aesthetics of the surrounding space Outdoor swing gate turnstile JDBZ-23 is designed with slim, elegant and stylish apperance, operating in a smooth, fast and reliable way with low noise and low power consumption.

As an effective crowd control solution for the applications requiring rapid throughput and modern design bleding into the aesthetics of the surrounding space, outdoor swing turnstile gate JDBZ-23 is often installed in upscale corporate lobbies, high rise building entrances, luxury apartment complexes, universities, and anywhere else where autonomous entry and aesthetics are important.

Outdoor swing gate turnstile JDBZ-23 is flexibly compatible with all access control systems with dry contact output, such as the RFID card system, face recognition, temperature checker system, coin operated system, Bar code system, ensuring one person, one passage each time.

Finally, automatic swing barrier turnstile JDBZ-23 provides single directional and bi-directional entry control, and automatically release the passage for free access In case of power failure or emergency.

Outdoor Swing Gate Turnstile Features

1 - Smooth and fast opening of barriers

2 - Solution for disabled and trolley access

3 - Free egress in emergencies or loss of power

4 - Quick and precise panel movement and alignment

5 - Motorized panels open quickly and smoothly away from the user

6 - Slim cabinet allows optical turnstile use in compact spaces

7 - Upscale look suitable for any premium lobby

8 - Run more smoothly and stop quickly after being blocked

9 - Streamlined design with a more modern aesthetic

10 - Adopt more reasonable electric control and layout to improve the protection level Outdoor Swing Gate Turnstile Applications

Subway

Large venues

Stadium

Commercial buildings

Fitness center Outdoor Swing Gate Turnstile Parameters

Housing material: #304 stainless sheet

Dimension: 1400 x 185 x 980mm

Power Supply: AC220V / AC110V, 50/ 60 Hz

Channel Width: 600~900mm

Drive Motor: DC 24V brushless motor

Pass Speed: 30 ~35 persons per minute

Input Interface: Dry contact signal or +12V level signal or DC12V pulse signal

Rotating Direction: Bi-directional

Communication interface: RS485

Gate open when power failure: Yes

Open Time: 0.2 second

Life Cycle: 3 million times

Working Temperature: -30°C~+70°C

Working Environments: Indoor, outdoor (with shelter)
