Mwir Cooled Mct Thermal Camera 15 280mm Continuous Zoom Lens - China

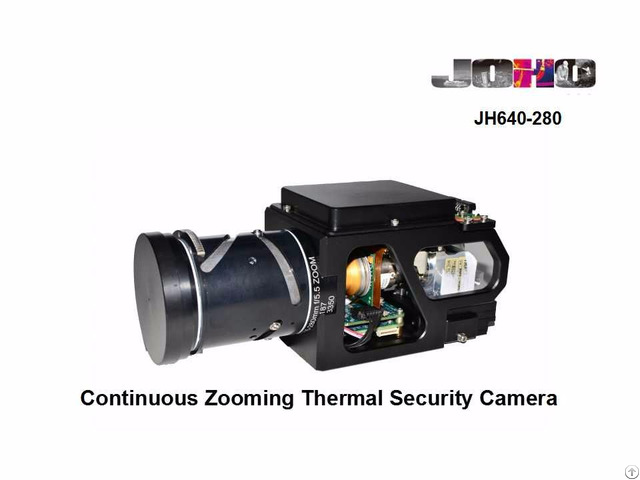

JH640-28015 Mini Thermal Security Camera

JH640-280 cooled thermal camera is a matured and high reliable product developed by our company independently to meet military standard.

It utilizes high-quality material and top-end manufacture technology.

The thermal camera is featured by small size, high sensitivity, easy to control, long monitoring range, all weather operations and easy for integration.

It adopts high sensitivity MWIR detector and 640x512 resolution for crispy image.

In addition, continuous zoom lens 15~280mm can distinguish the human, vehicle and ships at long range.

Technical Specification

Detector Parameters

Detector type Cooled FPA HgCdTe

Pixels 640×512, 15μm×15μm

Spectral Range 3.7μm~4.8μm

NETD ≤25mK@25ºC

Cooling Sterling

Optics Parameters

Focus Length 15~280mm continuous zoom

F number 5.5

FOV 1.97°(H)×1.58°(V) ~36.5°(H)×29.2°(V)

Image Presentation Video output PAL

Frame frequency 30Hz (50Hz on request)

Digital video 14bit LVDS

Brightness & Contrast Auto/Manual

Polarity BH&WH

E-zoom ×2/×4

Image enhancement Yes

Image inverted Yes

Power parameters

Power supply 24~36VDC

Power consumption ≤10w@25ºC

Environmental Parameters

Operating temperature -32ºC~+60ºC

Storage temperature -40ºC~+70ºC

Vibration test GJB150.16-86/MIL-STD-810F -514.5

Shock test GJB 150.18-96 /MIL-STD-810F-516.4

Physical Parameters

Weight ≤1.6kg

Dimension ≤218mm×98mm×89mm

Color Oxide black
