Mwir Cooled Infrared Thermal Imaging Camera Module 640x512 Pixel - China

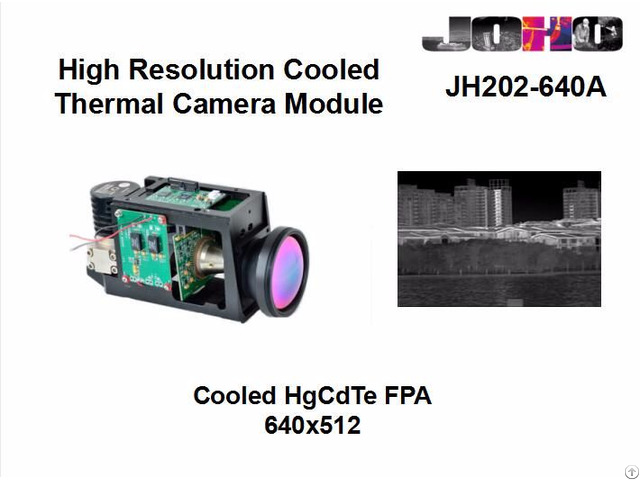

MWIR Cooled Infrared Thermal Imager Module JH202-640A Application

We provide cooled thermal imaging modules to research institutes and

enterprises for the thermal camera development and system integration.

Apply to long distance target detection, recognization and warning in the

fields of military industry, aerospace industry, frontier guards, coast defense, etc.

Feature

Cooled HgCdTe FPA Microbolometer, low noise and high sensitivity

Large area array, small pixel array, super-high IFOV

FPGA intelligent image processing platform, high frame frequency and clear image

Multiple control and image output interfaces, easy to integrate

Sterling cooling system, compact structure, small volume and light weight Function

Manual background/shutter calibration

White/black heat polarity switch

2x electronic zoom

Manual/Auto image gain/brightness adjustment

Cross cursor display/hide and position adjustment

Image enhancement, smoothness, sharpen and space-ground mode algorithm

Mirror image and flip the image horizontally or vertically

Motor focusing, field switch and continuous zooming command drive

Sampling voltage auto-focusing signal

System parameters self-check/reset Technical Specification Detector: Cooled HgCdTe FPA

Pixel: 640x512

Spectral band: 3.7~4.8um

NETD: <20mK(F/2)

Frame frequency: 25Hz, 50Hz, 100Hz

Integration time: adjustable

Analog video: PAL/NTSC

Digital video: 16bit TTL/LAVDS/Cameralink

Communication interface: RS232/Rs422

Input voltage: DC+24V (dc8~42V optional)

Power dissipation: <20W (cooling), <14W (temperature controlling)

Starting time: 6min at 20deg, 8min at 50deg

Operating temperature: -40deg~+60deg

Storage temperature: -50deg~+70deg

Dimension: 145mmx76mmx88mm Weight: 810g
