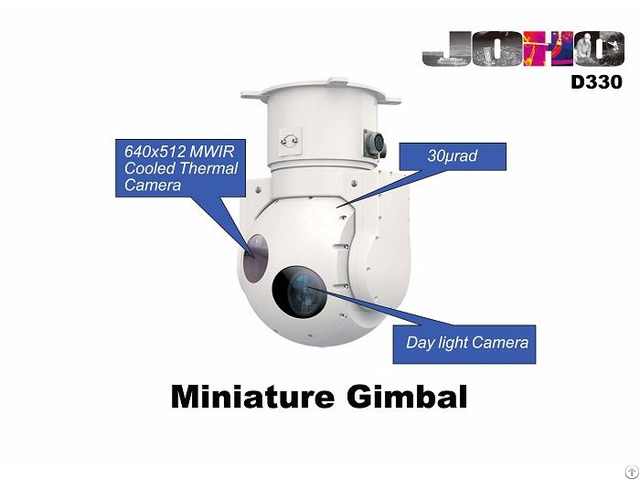

Miniature Airborne Eo Ir Thermal Imaging Pod - China
price: check with company for price
D330 is equipped with a high performance MWIR cooled thermal camera (640×512 resolution) and day light camera for day and night monitoring.
Using 2-axis and 4-gimbal mechanism, built-in high precision gyro, its stabilization accuracy is up to 30μrad.
Easy operation, user is able to independently complete all operation.
D330 is suitable for various search, observation, tracking, law enforcement and evidence collection.
APPLICAITON
Maritime monitoring ship, coast guard, fishery administration ship FEATURES
High resolution
Day and light monitoring
Using 2-axis and 4-gimbal mechanism
Built-in high precision gyro
Stabilization accuracy is up to 30μrad.
Easy operation TECHNICAL SPECIFICATION
Thermal camera
Detector MWIR Cooled FPA Stirling Cooling
Pixel 640×512
Detection range ≥4Km (3m×6m lifeboat)
Recognition distance ≥1.5Km (3m×6m lifeboat)
Day light camera
Sensor color CCD
Resolution ≥400TVL(720×576)
Detection range ≥6Km (3m×6m lifeboat)
Recognition distance ≥4Km (3m×6m lifeboat)
Gyro stabilization
Stabilization accuracy ≤30μrad
Detection scope
Azimuth 360°×n continually
Elevation +110°~-20°(straight down is 0°) Dimension 330mm×510mm (H)
Weight ≤32Kg
Company Contact:
- Posted By: Wuhan JOHO Technology Co.,Ltd
- Phone: _86-27-65027980
- Address: 3/F,1st Phase of Hubei Agricultural Technology Research and Promotion Center, No.53 Nanhu Avenue, Ho, Wuhan , Hubei , China
- Email:
- Website: http://www.johotec.com/
Published date: August 17, 2017
- Business Description: Wuhan JOHO Technology Co., Ltd (hereinafter as “Wuhan JOHO”) , is a professional high-tech company engaged in design, production and marketing of electro-optical infrared products.
Our products includes thermal security cameras, electro-optics system, special power sources and OEM solutions, serving the markets with excellent products and strong technology support.
