Long Range Monitoring Ptz Eo Ir Thermal Tracking Camera - China

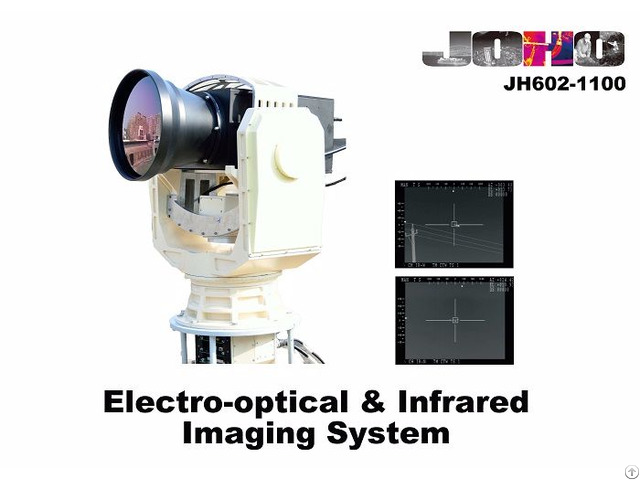

Ultra-long Range monitoring Electro-optical Infrared (EO/IR) Tracking Camera System JH602-1100 JH602-1100 electro-optical infrared (EO/IR) tracking camera system is equipped with a high resolution 640x512 HgCdTe MWIR cooled thermal camera with 1100~110mm continuous zoom lens which offers super long range security and monitoring application, capable of observation, recognition, aiming and tracking target at day and night.

JH6021100 system can work

independently for ship navigation and monitoring at night, or integrated into a larger monitoring system, capable of receiving slaving instruction from radar.

FUNCTIONAL AREA

n Day and night search targets in specified area

n Day/night detection, recognition and identification on specified target

n Isolate carrier (ship) disturbance, stabilized the LOS (line of sight)

n Manual/auto tracking target

n Real-time output and display LOS area n Real-time report captured target azimuth angle, elevation angle and angular speed information.

n System POST (power-on self-test) and feedback POST result.

TECHNICAL DATA

THERMAL CAMERA

Detector Cooled HgCdTeFPA

Pixel 640×512 Spectral band 3.7μm~4.8μm

FOV 0.5°×0.4°~5°×4° with 1100~1100mm continuous zoom lens

Optical-axis parallelism ≤1pixel

Electronic zoom 2× (optional: 4×)

SERVO

Stabilization accuracy ≤0.15mrad(1σ)

Turret direction range Azimuth: 0~330° (optional n×360°); Elevation: -20°~+75° Turret maximum angle speed Azimuth: >50°/s; Elevation: >50°/s

Tracking mode CTW, CTB, COT

Video signal format standard CCIR Data rate 50Hz, 100Hz

Communication RS422

POWER

Input voltage DC24V/15A, 220VAC

Consumption 96W (average); 240W (maximum)

ENVIRONMENTAL

Operating temperature range -40ºC~+60ºC

Storage temperature range -50ºC~+70ºC

PHYSICAL

Dimension 700mm × 700mm × 1050mm (system)

400mm × 300mm × 190mm (CDU)

Weight approx.

127kg (Camera); 10kg(CDU)
