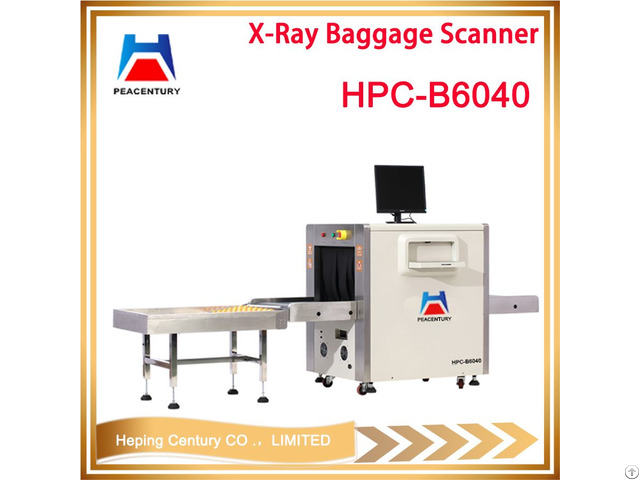

High Quality Machine Airport X Ray Baggage Scanner 6040 - China

TUNNEL SIZE: 600(w)*400(H)mm CONVEYOR SPEED: 0.22m/s

TYPE: Mutil Energy CONVEYOR: 200 Kg

STEEL PENETRATION: 38mm WIRE RESOLUTION: 40AWG

WARRANTY: 2 Years PRODUCT NAME: X-ray Baggage Scanner

High Quality X Ray Machine Airport X Ray Baggage Scanner X Ray Machine Advantage :

1 - With equipment to save electricity

2 - X-ray generator is from Beijing KV tech

3 - Interroll from Germany

4 - Receiver from DEETEE Finaland

5 - Protective cover on lead curtain to avoid lead pollution;

6 - Local network supported

7 - One-key shutdown control

8 - Self-diagnosis function

9 - TIP and training software, free programmable keys, real time diagnostic General Specifications: Tunnel Size :

600 (W) ×400 (H) mm

Conveyor Speed:

0.22m/s

Conveyor Max Load:

150 kg

Single inspection dosage:

<1.0μG

Film Safety:

Guarantee ISO1600 Film

Leakage radiation:

<0.1µGy/h

Steel Penetration:

40mm

Wire Resolution:

40AWG

Spatial Resolution:

1.0mm Horizontal and Vertical

Power Requirement:

220V AC (±10%) 50±3Hz

X-RAY GENERATOR: Tube Current:

0.7-1.2mA(adjustable)

Anode Voltage:

140-160KV(adjustable)

Angle:

80°

Generator cooling:

Sealed oil bath with forced air/100%

OPERATING ENVIRONMENT: Storage Temperature:

-20℃ to 60℃

Operating Temperature:

0℃ to 45℃

Relative Humidity:

20 to 95% non-condensing

System Power:

220 VAC (±10%) 50±3HZ

Power wastage:

1.0 KW (Max)

Noise:

<55DB

Computer Specification: Processor:

I3-4340 3.6 GHZ 22nm 54W

Memory:

4GDDR3 Loptop Memory

Hard Disk :

1T

X-RAY Sensor: L-shaped array detector, 24bit

Image Performance System:

1 - Display: High-resolution 19 inch color LCD display

2 - Color quality: 24-Bit real colors based on materials

3 - Edge enhancement: Object contour edge is more distinct

4 - Super image enhancement: Image detail is more distinct

5 - High penetration display: Increase the contrast of bright area in image to make the area appear more clearly

6 - Low penetration display: Increase the contrast of dark area in image to make the area appear more clearly.

7 - Magnifier: Partial magnifying function

8 - Brightening/dimming: Increase/Decrease brightness of image

9 - Image recurrence: Display the previous twenty images and process any one of them

10 - Image restoration: Restore image to initial status

11 - Image storage: Real-time store any image and process it in operation status

Multi-energy: High/low energy: Switch from high energy to low energy

Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green

Assist to detect drug and explosive powder

Special features:

1 - Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time

2 - Safety ray: Ray is transmitted under automatic control, avoiding the error

3 - One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient

4 - Eagle eye: Capable of expediently observing the magnifying area

5 - Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

6 - TIP and training software, free programmable keys, real time diagnostic

7 - Display date/time, baggage counter, User ID number

8 - Review feature, recall previously image, zoom overview, step less zoom

High Quality X Ray Machine Airport X Ray Baggage Scanner X Ray Machine
