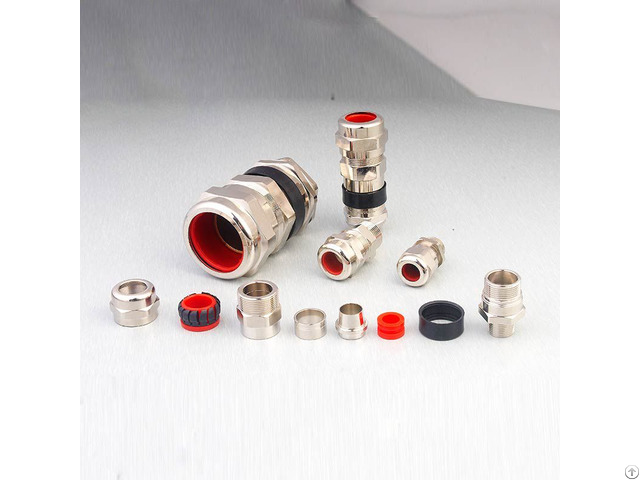

Explosion Proof Brass Double Sealed Cable Gland - China

Contact Person： AXL Chow Skype：hany3128 Mobile / WhatsApp：+86-1312520716 3 Fax：+86-0577-27862035 Tel：+86-0577-27870230 Material: H62, SS304, 316 Surface Treatment: Nickel plating, passivation Sealing material: plastic, Neoprene Explosion-proof Mark: Exd IIC GB Fireproof classification: V0(UL94) Protection Class: Within the clamping range, it can reach to IP66 Temperature Range: Min-60 °C, Max 100 °C, short time to 120°C Environmental Conditions: High-temperatire and atrocious Thread Options: Metric, NPT, G Thread Note: According the customer’s requirements, the extended GL screws are available.

The Drawing: Double Sealed Explosion-proof Cable Gland JX2 - Metric Thread

Code AG Thread Inner sheath/ core line Cable Outer diameter Armored cable/belt Max.

Length (H) Thread Length (mm) Six Angle Size

Metric NPT, G Core line Max Inner sheath Max core line Min Max Direction 1 Direction 2 On the edge

JX-2 -EX-12 M20*1.5 1/2’’ 9 10 6 5.5 12 0.9/1.25 0/0.7 65.5 15 24

JX-2 -EX-16 M20*1.5 1/2’’ 9 10 6 9.5 16 0.9/1.25 0/0.7 65.5 15 24

JX-2 -EX-20.5 M20*1.5 1/2’’-3/4’’ 11.2 12.5 10 12.5 20.5 0.9/1.25 0/0.7 67.5 15 30

JX-2 -EX-26 M25*1.5 3/4’’-1’’ 16.3 18.4 21 16.9 26 1.25/1.6 0/0.7 71.4 15 36

JX-2 -EX-33 M32*1.5 1’’-11/4’’ 22 24.7 42 22 33 1.6/2.0 0/0.7 76 15 46

JX-2 -EX-41 M40*1.5 11/4’’-11/2’’ 26.5 29.7 60 28 41 1.8/2.5 0/0.7 78.2 15 55

JX-2 -EX-52.6 M50*1.5 11/2’’-2’’ 37.2 41.7 80 36 52.6 1.8/2.5 0/1.0 91 15 65

JX-2 -EX-65.3 M63*1.5 2’’-21/2’’ 47.6 53.5 100 46 65.3 1.8/2.5 0/1.0 98 15 80

JX-2 -EX-78 M75*2.0 21/2’’-3’’ 60 65.3/66.2 120 57 78 1.8/2.5 0/1.0 102 15
