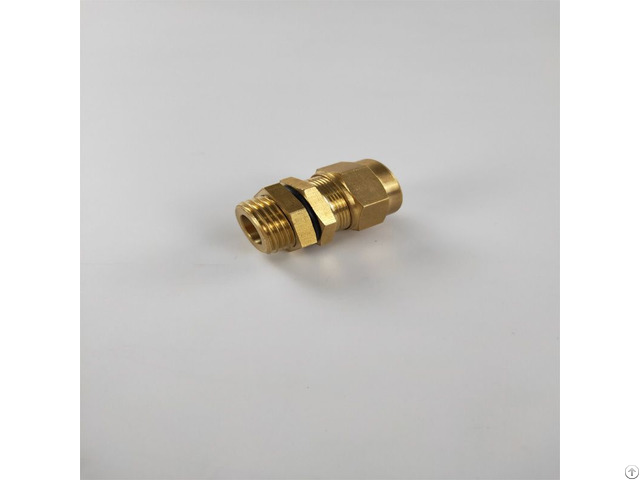

Explosion Proof Brass Cable Glands - China

Contact Person： AXL Chow Skype：hany3128 Mobile / WhatsApp：+86-1312520716 3 Fax：+86-0577-27862035 Tel：+86-0577-27870230 Material: Brass or stainless steel, brass with nickel platedCable: With packing sealProtection Class: IP66Explosion Mark: Exd IIFeatures: With quick installation, safety, reliability and other characteristics of good protection.

1 - It is Made of copper or stainless steel material;2 - Cable is sealed with gasketing;3 - With reliable installation, good protection and explosion-proof function;4 - Isolating gasket tube in suitable for clamping and fixing steel wire knit of armored cable, it is cable core and enclosure gas sealing protection most be lP66Function: Suitable for clamping and fixing various types of armored cable.

1 - Can be used in Hazardous division 1&2;2 - Can be used in Explosive gas atmosphere;QW6 DOES NOT HAVE cover ring (6).

The Drawing: EX Standard Cable Gland QW6 Series - Metric, G ThreadProduct CodeThread AGOuter Diameter of Cable (mm)Thread length L1(mm)Length L (mm)Outlet AIncoming Line BQW-6-EX-15AM16*1.5-43228 432961567QW-6-EX-15BM20*1 .

5G1/243232433271567QW-6- EX-20M25*1.5G3/4433294342 41571QW-6-EX-27M32*1.5G14 342614-271776QW-6-EX-33M4 0*1.5G1 1/414-2819-331776QW-6-EX- 40M50*1.5G1 1/216-3322-401794QW-6-EX- 50M63*1.5G229-4329-501798 QW-6-EX-

Company Contact:

• Posted By: qiwei

• Phone: +8613125207163

• Address: Liushi Town, Yueqing, Zhejiang, Liushi Town, zhejiang , China

• Email:

• Business Description: Our company has more than ten years experience in manufacturing explosion-proof products.

  experiences of explosion proof products, including ex-proof cable gland,EX cable pipe parts,

  our explosion-proof connection box, explosion proof armored cable glands, double seal explosion

  proof cable gland, single seal explosion proof cable gland, explosion-proof cable clamping

  sealed gland, double sealed armored explosion proof cable glands are popular in international markets
