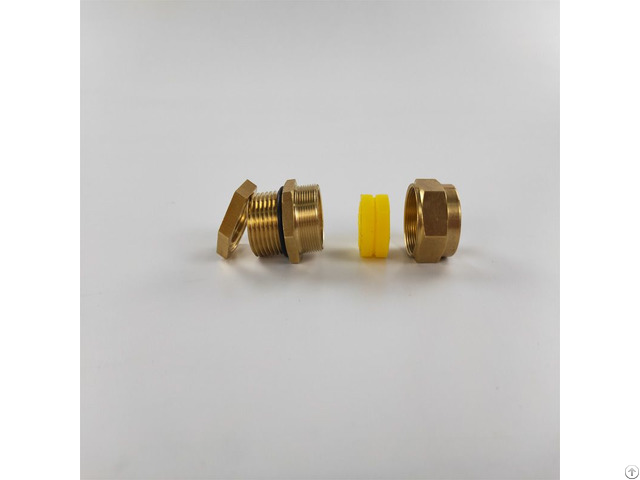

Ex Brass Cable Gland - China
price: 0.06 Dollar US$
Contact Person： AXL Chow Skype：hany3128 Mobile / WhatsApp：+86-1312520716 3 Fax：+86-0577-27862035 Tel：+86-0577-27870230 Material: Brass or stainless steel, brass with nickel plated Cable: With packing seal Protection Class: IP66 Explosion Mark: Exd II Features: With quick installation, safety, reliability and other characteristics of good protection.
1 - It is Made of copper or stainless steel material; 2 - Cable is sealed with gasketing; 3 - With reliable installation, good protection and explosion-proof function; 4 - Isolating gasket tube in suitable for clamping and fixing steel wire knit of armored cable, it is cable core and enclosure gas sealing protection most be lP66 Function: Suitable for clamping and fixing various types of armored cable.
1 - Can be used in Hazardous division 1&2; 2 - Can be used in Explosive gas atmosphere; QW6 DOES NOT HAVE cover ring (6).
The Drawing: EX Standard Cable Gland QW6 Series - Metric, G Thread
Product Code Thread AG Outer Diameter of Cable (mm) Thread length L1(mm) Length L (mm)
Outlet A Incoming Line B
QW-6-EX-15A M16*1.5 - 43228 43296 15 67
QW-6-EX-15B M20*1.5 G1/2 43232 43327 15 67
QW-6-EX-20 M25*1.5 G3/4 43329 43424 15 71
QW-6-EX-27 M32*1.5 G1 43426 14-27 17 76
QW-6-EX-33 M40*1.5 G1 1/4 14-28 19-33 17 76
QW-6-EX-40 M50*1.5 G1 1/2 16-33 22-40 17 94
QW-6-EX-50 M63*1.5 G2 29-43 29-50 17 98
Company Contact:
- Posted By: qiwei
- Phone: +8613125207163
- Address: Liushi Town, Yueqing, Zhejiang, Liushi Town, zhejiang , China
- Email:
Published date: June 17, 2019
- Business Description: Our company has more than ten years experience in manufacturing explosion-proof products.
experiences of explosion proof products, including ex-proof cable gland,EX cable pipe parts,
our explosion-proof connection box, explosion proof armored cable glands, double seal explosion
proof cable gland, single seal explosion proof cable gland, explosion-proof cable clamping
sealed gland, double sealed armored explosion proof cable glands are popular in international markets
