Electronic Transformer For Elevator - China

A control transformer (SCR for short) is a device that converts DC voltage into AC voltage.

It consists of three parts: rectifier circuit, control circuit, and inverter.

The basic principle is: when the input power is converted into DC through the rectifier, the output voltage is changed in a certain proportion by controlling the switch, so as to achieve the purpose of changing the output voltage.

There is no difference between the principle of a control transformer and an ordinary transformer, but the use is different.

Control transformers are widely used, and can be used for step-up and step-down.

The working principle of the control transformer is based on the principle of electromagnetic induction.

The transformer has two sets of coils, the primary coil, and the secondary coil.

When the primary coil is connected to alternating current, the transformer core generates an alternating magnetic field, and the secondary coil generates an induced electromotive force.

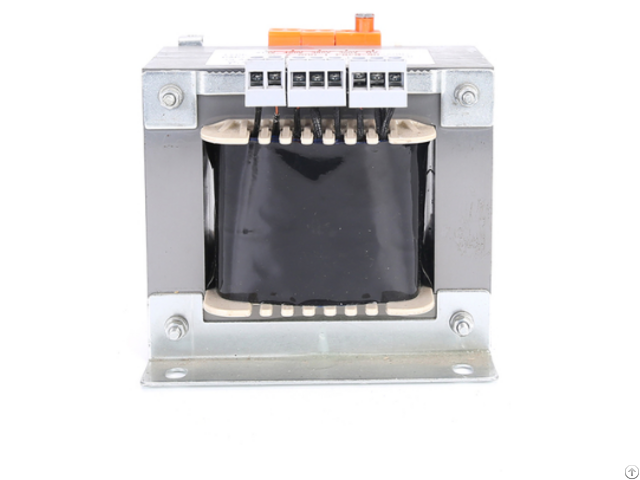

Control Transformer Classification: Power Transformer Structure Classification: EI Iron-core Transformer Sort by Phase Number: Single Phase Transformer Input Voltage: 110V, 220V, 380V (customizable) Output Voltage: 6V-220V (customizable) Frequency: 50Hz/60Hz Insulation Class: Class E-B-F-H Features and Advantages: Good thermal stability Strong overload capacity Energy conservation Low noise(<65dB) Simplified structure, beautiful appearance Application Areas Power supply for the elevator, control machine, electric appliance, local lighting and indicator light, etc.

Company Contact:

• Posted By: Zhejiang Ilander Electric Co., Ltd.

• Phone: 86-0573-85091851

• Address: No.818, Longan Road,Caoqiao Industrial Zone, Pinghu , Zhejiang , China

• Email:

• Website: https://www.ilanderelectric.com/

• Business Description: Zhejiang Ilander Electric Co., Ltd is Electrical Power Transformers Manufacturers and Voltage Transformers suppliers, Our factory is located in the developed Yangtze River Delta region - Zhejiang Pinghu Caoqiao Industrial Zone.

  It enjoys a unique geographical advantage.

  It is the first stop to connect Zhejiang province to Shanghai.

  The bridgehead of Hangzhou Bay Cross-sea Bridge.

  It is one hour's drive away from the four major cities of Shanghai, Hangzhou, Suzhou, and Ningbo.

  It is a famous "Silk of the House" and "Land of Plenty" in the Jiangnan.

  It is known as the "Golden Pinghu".

  The company mainly develops, designs and manufactures various 35kV and below dry-type transformers, oil-immersed transformers, amorphous alloy transformers, three-phase transformers, reactors, special transformers, a full range of electronic transformers, inductors and other coil products.
