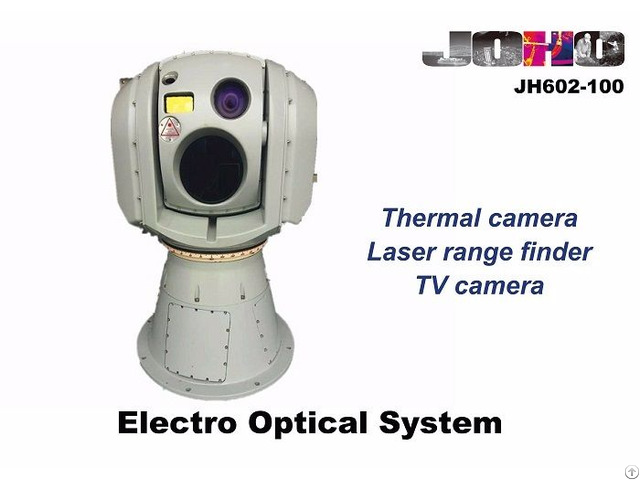

JH602-100 Electro-optical Infrared Sensor System JH602-100 system is equipped with a high resolution LWIR uncooled thermal camera with 100mm lens, a day light camera and a 5Km laser range finder for detection, recognition, identification, aiming and ranging target at day and night, as well as provide real-time target azimuth, elevation, distance and video information.

Built-in high accuracy gyro stabilization enables image stabilization while carrier attitude changes.

Remote and Local operation is able to be switched flexibly according to practical application.

Under remote operation mode, as a part of full defense system, it receiving target designation from mission computer and execute mission.

Under local operation mode, it is used for navigation or monitoring.

Application

Applied to vehicle to search, observe, track and attack target with collimation control, navigation and early warning functions.

It can also serve as assistant navigation and warning for the vehicle during the night.

Features 1 - Multi-sensor integration (IR+TV+LRF)

2 - Advanced tracking algorithm enables real-time tracking and memory tracking if target lost temporarily

3 - 2-axis 2-gimbal mechanism, built in gyro-stabilization

4 - Military standard components greatly improves system reliability

5 - Super-strength aluminum alloy housing and fully sealed make sure system operation under any harsh environment

6 - Modular design easy for repair and update

7 - Friendly HMI for easy operation Technical Specification THERMAL CAMERA

Detector LWIR Uncooled FPA microbolometer

Pixel 640x512

Spectral band 8μm~12μm

FOV 6.2° x 5.0° ( electronic zoom: 2×)

Focal Length 100mm, F#: 1

DAY LIGHT CAMERA

Detector 752*582, 1/3" white/black CCD

FOV 55.8° x 2.1° continuous zoom

Illumination Range 200Lx ~105Lx

LASER RANGE FINDER

Wavelength 1.06μm

Ranging 300m~5km (visibility 10km, 8m*2m target)

Measurement accuracy ≤ ± 5m

SERVO

Stabilization accuracy ≤ 0.2mrad (1σ)

Turret direction range Azimuth: ± 180° (0°is bow direction); Pitch: -20°~+75°

TURRET MAXIMUM ANGLE SPEED

Azimuth ≥50°/s

Pitch ≥50°/s

Video signal format CCIR PAL standard B/W

Communication RS232

ENVIRONMENTAL

Operating temperature range -40ºC ~ +60ºC

Storage temperature range -40ºC ~ +65ºC

POWER

Power Supply DC 24V/15A, DC28V/15A

Power Consumption DC24: ≤350W

DC28V: ≤420W

PHYSICAL

Dimension (L×W×H) Turret: Φ400×630mm

Electronic cabinet: 159x346.8x185.5mm

Control box: 364×200.5×137.5mm

Weight Turret: ≤70kg

Electronic cabin: ≤8.2kg

Control box: ≤1.2kg
