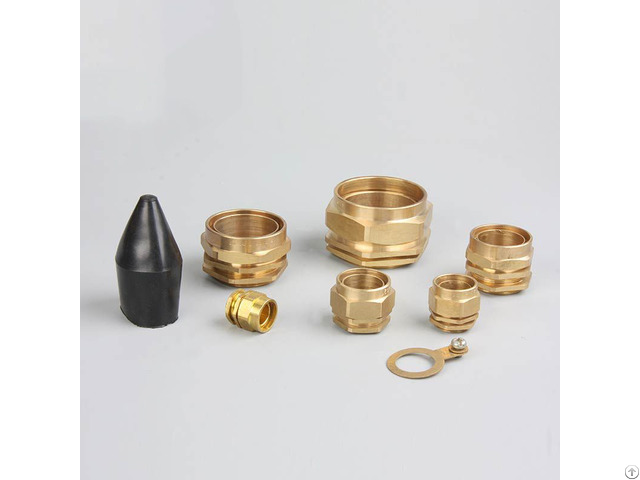

Bw Brass Cable Gland - China
price: 0.06 Dollar US$
Contact Person： AXL Chow Skype：hany3128 Mobile / WhatsApp：+86-1312520716 3 Fax：+86-0577-27862035 Tel：+86-0577-27870230 Material: Brass or Brass, nickel plated Standard: BS 6121-1-2005 Protection Rate: IP30 Temperature: -80°C - +600°C Thread options: Metric, NPT, BSP& PG Application: Dry Indoor for use with all types of SWA extruded Bending Cable.
Function: BW type glands provide mechanical cable retention & electrical continuity via armoured wire termination.
Cable Type: SWA Extruded Bending Cable.
Accessories: Matching accessories available like PVC Shrouds, Locknuts and earth tag.
BW Cable Gland – Armored, Metric, NPT Thread
Code Thread size Min Thread length L(mm) Cable diameter(mm)
Metric NPT Max “A” (mm) Max “B” (mm)
QW-BW20S M20 1/2’’ 10 11.5 15.5
QW-BW20L M20 1/2’’ 10 14 20.5
QW-BW25S M25 3/4’’ 10 18 24
QW-BW25L M25 3/4’’ 10 20 27
QW-BW32S M32 1’’ 10 26.3 33.5
QW-BW32L M32 1’’ 10 26.3 33.5
QW-BW40S M40 1.1/4’’ 13 31.5 39.5
QW-BW40L M40 1.1/4’’ 13 32 40
QW-BW50S M50 1.1/2’’ 13 38.2 46.3
Company Contact:
- Posted By: qiwei
- Phone: +8613125207163
- Address: Liushi Town, Yueqing, Zhejiang, Liushi Town, zhejiang , China
- Email:
Published date: June 17, 2019
- Business Description: Our company has more than ten years experience in manufacturing explosion-proof products.
experiences of explosion proof products, including ex-proof cable gland,EX cable pipe parts,
our explosion-proof connection box, explosion proof armored cable glands, double seal explosion
proof cable gland, single seal explosion proof cable gland, explosion-proof cable clamping
sealed gland, double sealed armored explosion proof cable glands are popular in international markets
