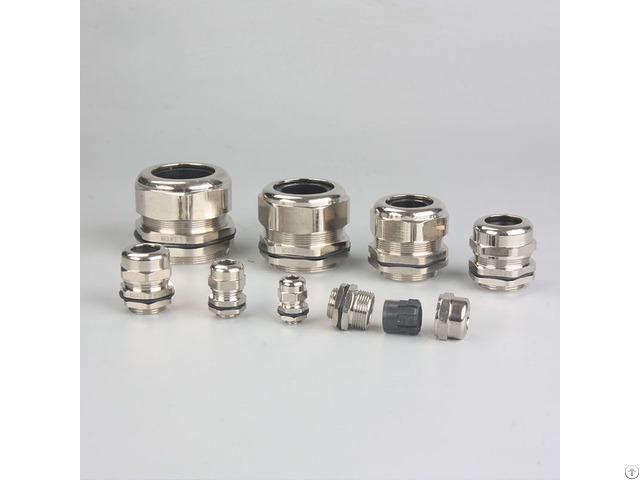

Brass Cable Gland Mg Series Pg Thread - China

Contact Person： AXL Chow Skype：hany3128 Mobile / WhatsApp：+86-1312520716 3 Fax：+86-0577-27862035 Tel：+86-0577-27870230 Material: Cap nut: Brass with nickel Plated Clamping Insert: PA66 ( Flammability UL 94V-2) Sealing Ring: EPDM Gland Body: Brass with nickel plated Certificate: CE, IP68, ISO9001, TUV Protection Class : IP68-10 BAR Operating Temperature: -40 DEG to +100 DEG, (short time to 120 DEG); -20 DEG to 80 DEG, (short time to 100 DEG) Features: The claws and seals of excellent design, sealing nut have a “click” sound and re-open, can hold cable firmly and have a wider cable range.

Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.

Function: Metal Cable Gland is cable supporting products, connector cable can be locked, the other end of the device can access the device through the box body, also can choose thread access according to the entry and outlet of the internal thread electrical equipment.

More options: Customization is acceptable.

Welcome to inquire when ordering.

Brass Cable Gland New Type– PG thread

Product Code Thread AG Cable range(mm) Thread O.D.(mm) Mounting Hole Diameter (mm) Thread length GL(mm) Spanner Size (mm) Std, Pkg (pcs)

QW-PG7A-MG PG7 3-5.3 12.5 12.5-12.8 8 17/17 10

QW-PG7B-MG 4.5-7.8 12.5 12.5-12.8 8 17/17 10

QW-PG9A-MG PG9 3-5.8 15.2 15.2-15.5 8 18/17 10

QW-PG9B-MG 4.5-7.8 15.2 15.2-15.5 8 18/17 10

QW-PG11A-MG PG11 4-7 18.6 18.6-18.9 9 22/22 10

QW-PG11B-MG 6-10 18.6 18.6-18.9 9 22/22 10

QW-PG13.5A-MG PG13.5 5-8.8 20.4 20.4-20.7 9.5 24/24 10

QW-PG13.5B-MG 7-12 20.4 20.4-20.7 9.5 24/24 10

QW-PG16A-MG PG16 7-11 22.5 22.5-22.8 9.5 26/26 10

QW-PG16B-MG 9-14 22.5 22.5-22.8 9.5 26/26 10

QW-PG21A-MG PG21 12-16 28.3 28.3-28.7 12 32/32 10

QW-PG21B-MG 14-18 28.3 28.3-28.7 12 32/32 10

QW-PG29A-MG PG29 16-22 37 37-37.4 12.5 41/41 10

QW-PG29B-MG 18-25 37 37-37.4 12.5 41/41 10

QW-PG36A-MG PG36 21-25 47 47-47.4 15 50/50 5

QW-PG36B-MG 24-30 47 47-47.4 15 50/50 5
