Border Coastal Ptz Electro Optical Monitoring System Eoss Jh320 150 75 - China

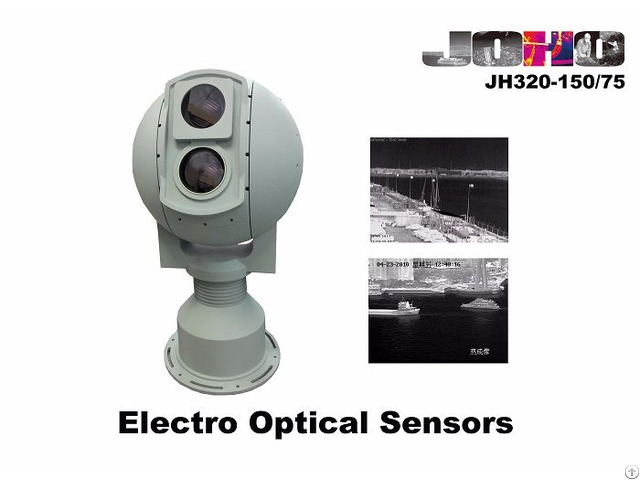

Border/Coastal PTZ Electro-optical monitoring System (EOSS) JH320-150/75 JH320150/75 is an intelligent IP network establish a "virtual fence" near the coast/border to detect intruders before they reach.

It is equipped with a long range thermal camera and 60x day light camera to observe intruders and other threats from the sea or border in total darkness and bad weather.

This system is either to be used as independent or connecting with radar under "slaving mode", capable of automatically turn to target designation area.

This system adopts high speed fiber optic data transmission to ensure continuous video record at long range.

FEATURES

Configurable sensor and lens to satisfy various missions

Continuous zoom and adjustable focusing speed is available

High precision turret position, less than 0.1 deg

Simple connection camera system over Ethernet

IP66 protection against dust and water ingress, resist to corrosion, tarnishing, salt fog

Modular design, easy for repair and upgrade TECHNICAL SPECIFICATION

Thermal Camera

Detector Uncooled VOx FPA

Pixel 324×256

Spectral Band 8~14μm

FOV 3.1°×2.4°~15.2°×12.2 °

IFOV 0.17~0.83mrad

NETD ≤50mK at F1.0, 300

Day Light Camera

Focal Length 12.5~750mm, 60× zoom

FOV 0.5°~28.7°

F# F3.8~F22 - C

Sensor 1/1.8" Progressive Scan CMOS

Video Control AGC, AWB, support day/night mode switch auto/manual

Resolution 1080p, Support three bit stream

Turret

Pan Range 360°

Tilt Range -80°~+80°

Pan Speed 0.1°~30°/s

Tilt Speed 0.1°~30°/s

Acceleration Max: 40°/s2

Protocol Pelco-D, Pelco-P

Baud Rate 2400/4800/9600/19200bps

Environmental

Operating Temperature -40ºC~+60ºC

Storage Temperature -50ºC~+70ºC

Protection IP66

Salt Fog PH6.5-7.2, 48hours continuous spray

Power Power Supply DC24V

Consumption ≤180W

Physical

Weight ≤110kg

Size 605mm×605mm×1160mm (L×W×H)

Application Environment Outdoor
