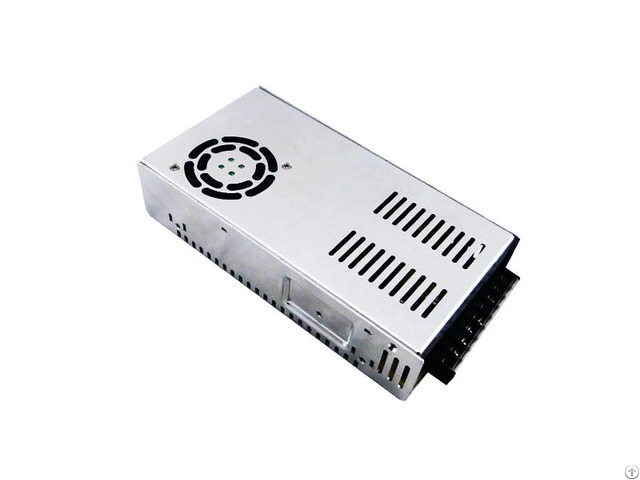

350w Enclosed Ac Dc Switching Power Supply - China

The rated output power of TPC/NE-350-XS series is 348-350.4W, input voltage range：90~132Vac/180~264 Vac, output voltage : 12V, 15V, 27V, 36V, 48V, High reliability, precision, effificency, with short circuit, over-load protection, Widely used in telecommunications, industrial control, instrument, data acquisition, signal control, New Energy, Security, and other electronic systems.

AC input selectable by switch ：90~132/180~264 VAC 100% full load burn-in test short circuit, over-load protection Operating temperature：-20℃~70â„ ƒ RoHS complaint Suitable for critical applications All using 105℃ long-life electrolytic capacitors High reliability, effificency /

SELECTION GUIDE

Part Number Input Output Efficiency

@25℃, (Typ)% Volatge(VAC) Voltage(VDC) Pre-set voltage

@25℃(V) Rated current(A) Current range(A) Rated power(W) Rated Range values TPC/NE-350-12S 220 90-264 12 12.00-12.10 29.0 0-29.0 348 ≥82.5

TPC/NE-350-15S 220 90-264 15 15.00-15.10 23.2 0-23.2 348 ≥84.0

TPC/NE-350-27S 220 90-264 27 27.00-27.10 13.0 0-13.0 351 ≥85.5

TPC/NE-350-36S 220 90-264 36 36.00-36.10 9.7 0-9.7 349.2 ≥86.0

TPC/NE-350-48S 220 90-264 48 48.00-48.10 7.3 0-7.3 350.4 ≥87.0
