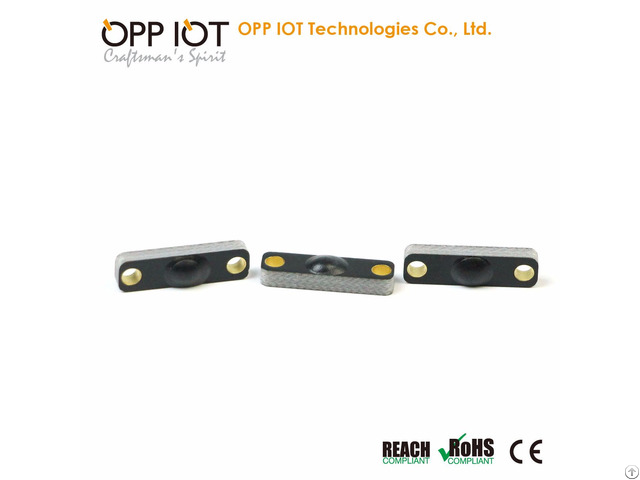

Ultra Thin Gen2 Anti Metal Rfid Uhf Tag Alien H3 Chip - China
price: contact company for price
Functional Specifications:
RFID Protocol: EPC Class1 Gen2, ISO18000-6C
Frequency: US 902-928MHz, EU 865-868MHz
IC type: Alien Higgs-3
Memory: EPC 96bits (Up to 480bits), USER 512bits, TID64bits
Write Cycles: 100, 000times
Functionality: Read/wri te
Data Retention: Up to 50 Years
Applicable Surface: Metal Surfaces
Read Range:
(Fix Reader: ThingMagic M6-E, 36dBm/4W) 210cm - (US) 902-928MHz, on metal
220cm - (EU) 865-868MHz, on metal
Read Range(On Metal):
(Handheld Reader: OP9908, R2000, 33dBm/2W)
130cm - (US) 902-928MHz, on metal
150cm - (EU) 865-868MHz, on metal
Warranty: 1 Year Physical Specification:
Size: 15x4mm, (Hole: D2mm*2)
Thickness: 2.0mm without IC bump, 2.8mm with IC bump
Material: FR4 (PCB)
Colour: Black (Red, Blue, Green, White)
Mounting Methods: Adhesive, Screw
Weight: 0.7g Enivironmenal Specification:
IP Rating: IP68
Storage Temperature: -40°C to +150°C
Operation Temberture: -40°C to +100°C
Certifications: Reach Approved, RoHS Approved, CE Approved
