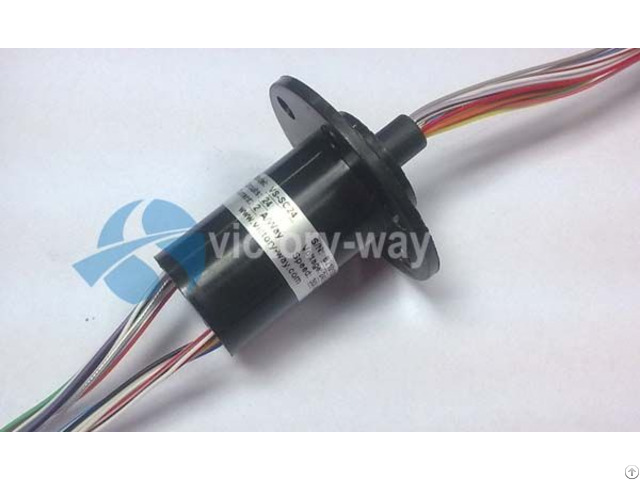

Twenty Four Circuits Standard Capsule Slip Ring Compact Cost Effective - China

SC slip ring capsule is a standard, off-the-shelf unit that uses gold contacts at the rotary interface.

Color-coded lead wires are used on both the stator and rotor to distinguish, with double contacts & double precision roller bearings, it utilizes 90°V-groove rings to provide smoother running, lower torque and lower electrical noise.

Flame-retardant plastic shell, 6, 12, and 24 circuit models for Power and /or signal.

A.

)Specification: Channels 1~24 Ways

Voltage 240V AC/DC

Current Rating 2A/Ring

Speed 300PRM

Insulation Resistance 1000MΩ@500VDC

Dielectric Strength AC250V@60Hz, 60S

Electrical Noise 60 milliohms MAX @ 5~10 rpm, 50milliamps, 6V DC

Lead Size/Type AWG28 Sliver plated coppe, Type ET Teflon

Lead Lengths 250mm

Operate Temp -20℃～+80℃

Storage Temp -30℃～+90℃ B.

)Feature:

● Compact miniature design, small size, fit for harsh space;

● Double precision roller bearings for lower torque & long life;

● Signal and power can be combined to deliver in the same slip ring;

● More installation flanges for option.

C.

) Option:

● Higher speed;

● Metal shell;

● Available connector and Heat-shrink tube;

● Length of lead wires can be customized.

Our products are widely used in: Security, Factory Automation, Electric Instrumentation, Medical, Aerospace, Marine, Civil and Military Fields.

Such as: Crane, Giant Wheel, Cotton Picker, Medical Equipment, Detector, Rotary Tables, Robots, Strander, Webcam, Automatic Revolving Door, Exhibit / Display Equipment, Food Manufacturing Machine, Packaging Machine, Amusement Equipment, Irrigation Machine, Heated Rollers etc.

More product information welcome to visit our website.

Company Contact:

• Posted By: Victory-way Electronic(Shenzhen) Co., Ltd

• Phone: +86-755-2780 6979

• Address: BLD.D, Hejing Industrial Park, Heping Fuyong, Baoan District Shenzhen,China, Shenzhen , Guangdong , China

• Email:

• Business Description: Victory-way Electronic(Shenzhen) Co., Ltd. is a high-technology company which focuses on R&D and production of industrial electrical slip ring, created by senior engineers with many years of conductive slip ring application and development experience.

  So we can learn the demands of customers better and provide the best solution in the shortest time to help customers shorten development time.

  We design, develop and produce fiber composite (FORJ), electrical liquid mixture, high-frequency combinations, explosion-proof slip rings, waveguide combination of slip rings, etc.

  and we can provide the electrical contact devices in varieties of working conditions, from the underwater environment to the high altitudes, from the alpine zone to the high temperature environment, and even for the explosive condition.

  At present, our products are applied in the fields of security, industrial automation, military, environmental protection and so on.

  Excellent performance and reliable quality make our conductive slip ring exported to developed industrial countries, such as Japan, USA, Europe etc.

  Our products are very popular with customers and we are honored to be privileged the only supplier of slip ring for some customers of the high reliability requirement.

  We will continue to work hard to provide high quality conductive slip ring and the best solutions to customers.
