Product Overview

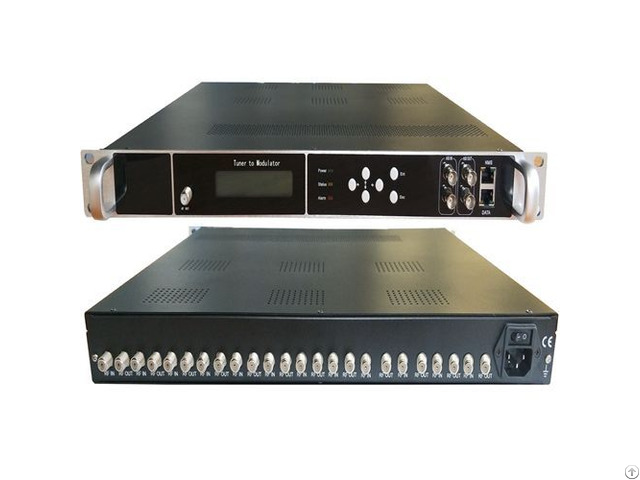

STMQ-800 is a professional high integration device which includes tuner demodulation, multiplexing, and modulation.

It supports 4/8/12/16/20/24 tuner input(support different types of tuner DVB-S2/DVB-C/DVB-T/ATSC/D TMBT/ISDBT as input), 1000M IP input, 4 RF output(ATSC, ISDBT, DTMBT, DVB-C/-T), 5 MPTS output and SPTS output。In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.

Key Features

 4/8/12/16/20/24 tuner input

(DVB-S2/DVB-C/DVB-T/AT SC/ISDBT/DTMBT)

 1000M IP output over UDP and RTP protocol(MPTS and SPTS)

 Support different types of tuner ( DVB-S2, DVB-C, DVB-T, ATSC, DTMBT, , ISDBT, etc.

) input, or mixed use ( e.g., 4dvb - t and 4 ATSC input at the same time, making up 8 tuners as input )

 4 RF output (ATSC, ISDBT, DTMBT, DVB-C/-T)

 2 ASI inputs  2 ASI Independent output (optional) as copy of 5MPTS  Support “Null PKT Filter” function

 Support PID Remapping/ PCR accurate adjusting

 PID pass

 LCD, key function

 Control via web management, and easy updates via web Technical Specification

Input 4/8/12/16/20/24 tuner (DVB-S2/DVB-C/DVB-T/ATSC/ ISDBT/DMBT) 2 ASI inputs 1000M IP input

Output 4RF output(DVB-C/DVB-T/ATSC/I SDBT/DMBT) 2 ASI output IP output(SPTS and MPTS)IP output over UDP and RTP protocol Multiplexing Maximum PID Remapping 180 output pids per channel Function PID remapping ( automatically or manually) Accurate PCR adjusting

Modulator DVB-T RF number 4 DVB-T Standard EN300744 FFT mode 2K bandwidth 6M, 7M, 8M Constellation QPSK, 16QAM, 64QAM Guard Interval 1/4, 1/8, 1/16, 1/32 FEC 1/2, 2/3, 3/4, 5/6, 7/8 MER ≥42 dB RF frequency 50~960MHz, 1KHz step RF output level -34~ -10 dBm, 0.1db step DVB-C RF number 4 RF output Standard EN300 429/ITU-T J.

83A/B/C MER ≥40db RF frequency 50~960MHz, 1KHz step RF output level -34~-10dBm, 0.1dBm step Symbol Rate 5.0Msps~7.0Msps, 1ksps step J.

83A J.

83B/J.

83C Constellation 16/32/64/128/256QAM 64/256 QAM Bandwidth 8M 6M ATSC RF number 4 RF output Standard ATSC A/53 Bandwidth 6M Constellation 8VSB FEC RS(208 188)+Trellis MER ≥40dB RF frequency 50~960MHz, 1KHz step RFoutput level -34~-10dBm, 0.1dBm step ISDBT RF number 4 RF output Standard ARIB STD-B31 Bandwidth 6M Constellation QPSK, 16QAM, 64QAM Guard Interval 1/32, 1/16, 1/8, 1/4 Transmission Mode 2K Code rate 1/2, 2/3, 3/4, 5/6, 7/8 MER ≥40dB RF frequency 50~960MHz, 1KHz step RF output level -34~-10dBm, 0.1dBm step

System function Network management(WEB) Chinese and English language Ethernet software upgrade

Miscellaneous Dimension(W×L×H) 550mm×515mm×140mm weight 6kg Environment 0~45℃(work)；-20~80℃ (storage) Power requirements AC100~240V, 50/60Hz
