Mapesen 2.4mp High Resolution 4 In 1 Day And Night Colorful Camera - China

Model number MP-L1QSH2

Camera

Image Sensor 1/3‘’ CMOS Image Sensor

Resolution 1080 25/30fps

Effective Pixels 1945(H) X 1097(V)

Video Standard PAL / NTSC (Changed via OSD)

Output Signal TVI + CVI + AHD / CVBS

Synchronization Internal

Real WDR OFF / LOW / MIDDLE / HIGH (Max 120dB)

S/N Ratio 45dB (F1.4 0.1lx)

Electronic Shutter MANUAL / AUTO

White Balance ATW

AGC 0-20

BLC OFF / BLC / HLC / WDR

DNR 3D DNR

Language CHN(S) / CHN(T) / ENG / KOR / JPN

Illuminance Color: 1lx, B&W: 0.5lx (DSS OFF), Color: 0.017lx, B&W: 0.0008lx (DSS ON)

Transmission Distance TVI 500m / CVI 500m / AHD 500m / CVBS 100m

IR Led Non

IRIS ELC / ALC

2-Motor(or FOCUS ADJ) OFF / ON

Day&Night EXTERN / AUTO / COLOR / B&W

Color WB / COLOR GAIN

Gamma 0.45 / 0.55 / 0.65 / 0.75

Frame Rate 1080P_25FPS / 1080P_30FPS / 720P_25FPS / 720P_30FPS / 720P_50FPS / 720P_60FPS

Communication Protocol Pelco-D

Baudrate 2400 / 4800 / 9600 / 57600 / 115200

Other Defog, Motion Detection, Privacy Mask, Mirror, Flip

LENS

Focal length 3.6mm/6mm/8mm optional

Lens Mount M12

General

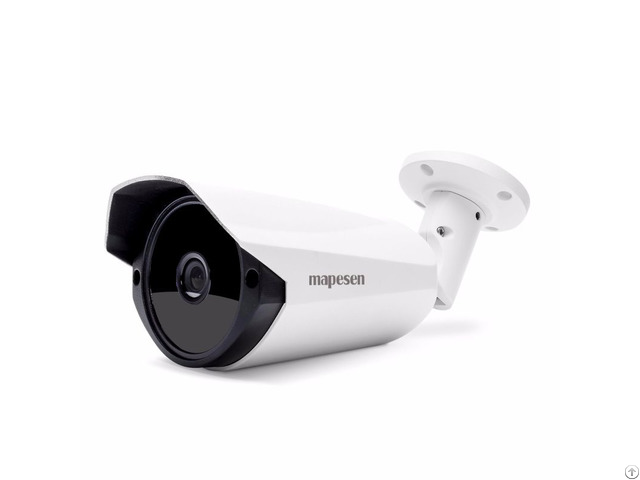

Type Outdoor Metal Bullet Camera

Weather Proof IP66

Power Supply 12 V DC±10%

Power Consumption 3W

Operating Temp.

-10 °C to +60 °C
