Lglguo Ps1206bg 2 5g Gigabit Poe Separator Standard Ieee802 3bt 72w - China

Single-Port 10/100/1000Mbps 802.3bt PoE++ Splitter

The PS1206BG splitter separates the power and data signals transmitted through network cables and is used in conjunction with power supply devices that comply with IEEE 802.3af/at/bt standards (such as PoE power switches, PoE centralized power supplies, PoE power transceivers, etc.

), providing both data and power for network devices that do not support PoE.

The PS1206BG separator can output 12V voltage, which can be used in conjunction with power supply equipment to flexibly expand household and office networks without being limited by power line layout.

Characteristic：

Speed: 10/100/1000/2500M

Working temperature: -20 ° C to+50° C

Support standard: IEEE802.3AT/BT

Indicator light: DC, working status indicator light

Input voltage: 41-57V Output: 12V6A/24V3A Two optional voltages

1.5KV isolation protection, effectively protecting electrical equipment

Size: 106*77*24 (MM)

Desktop, wall-mount design

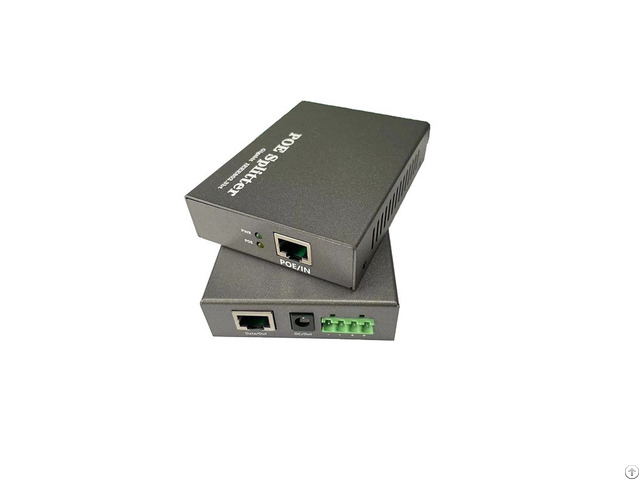

Physical image: Technical Specifications

Power supply mode: 1245+, 3678-

Performance specification: Bandwidth: 1Gbps (non blocking)

Network latency (100 to 100bps); Max 20 microseconds (using 64 bytes)

Package buffer memory: 96kb

Address database size: 1024 (MAC)

Transmission rate: 1000m port, maximum 1488000 frames/second

Standards Compliance: IEEE 802.3 10BASE-T Ethernet

IEEE802.3U 100BASE-TX Fast Ethernet

IEEE802.3ab 1000BASE-T Gigabit Ethernet

IEEE802.3at Power over Ethernet Plus

IEEE802.3bt 4-pair Power over Ethernet Type-4

Size: Host: 106*77*24mm

Packaging: 125*105*55mm

Weight: 0.2kg

Environmental specifications: Working temperature: -20 ° -50 °

Working humidity: 10% -90% without condensation

Package Contents:

PS1206BG x 1

25cm UTP straight network cable x 1

25cm External female plug cables x 1: 5.5/2.5mm to 5.5/2.5mm
