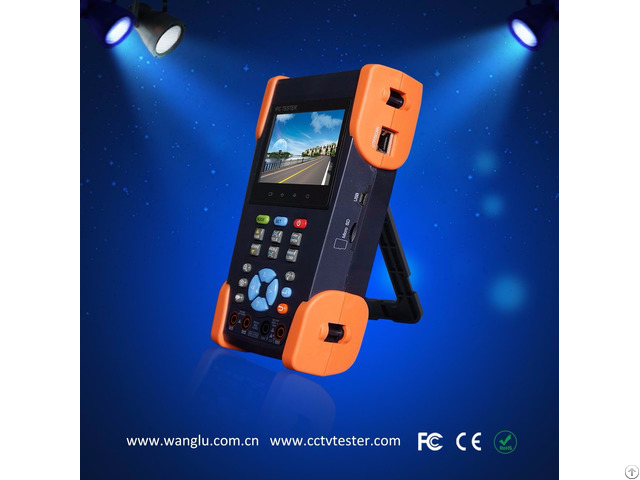

Hd Cvi Tvi Ahd Sdi Cctv Camera Tester - China

1.3.5 inch touch screen, 480*320 resolution

2 - Capacitive touch screen , OSD menu

3 - Touch screen and key operation

4 - Support AHD/CVI/TVI camera test .

snapshot , video record and playback , zoom,

5 - Built-in WIFI, wireless network camera test

6 - Support 1080P camera

7 - IP discovery, do not need to know the first two digits of camera’s IP address , it can auto-scan the whole network segment IP, and auto-modify tester’s IP address NEW

8 - Rapid ONVIF, search camera quickly, auto log in and display image from the camera, activate Hikvision camera NEW

9 - Hik test tool app is design for activating and debugging Hikvision camera, can auto-identify unactivated hikvision camera, also can display image from the Hikvision camera.

NEW

10 - DH test tool app is design for Dahua Camera image test, support modify IP, user name and password etc parameters.

NEW

11 - SDI camera test （*Optional）

SDI digital video monitoring testing, support resolution as follows:

1280x720P 25Hz/1280x720P 30Hz/1280x720P 50Hz/1280x720P 60Hz/1920x1080P 25Hz/1920x1080P 60Hz/1920x1080I 50Hz/1920x1080I 60Hz

12 - digital camera image test and video image zoom, record, screen snapshot, Photo viewer and playback

13 - BNC input& output , both IP & Analog images could be zoomed in 1~4times and output

14 - ONVIF/WIFI , ONVIF PTZ control , , built in WIFI to receive the network image and data

15 - If IP camera manufacturers can offer Video Management Software that compatible with mobile phone or tablet PC, install the Video Management Software in the tester enable the tester to display IP camera image by IP camera viewer

16 - Video screen snapshot , video recording , files named and save, easy to find

17 - Support network PTZ controller (ONVIF)

18 - MPEG4, H.

264, , MJPEG/MJPG IP camera image test

19 - Support 1080P HD video files and MKV/MP4 media files play

20 - PTZ controller , Photograph, Video record, Record playback

21 - Support genuine image display

22 - Video level meter, Video PEAK lever, SYNC level, COLOR BURST measurement Optional

23 - Optical Power Meter, it can measure the optical power value and fiber loss *(Optional)

24 - Visual fault locator , to test fiber’s bending and breakage * (Optional)

25 - TDR cable test, test cable length and short-circuit * (Optional)

26 - Digital Multi-meter, Voltage, current, resistance and capacitance measuring, continuity testing, diode testing.

(Optional)

27 - Color bar generator, analog video color bar and testing image output

28 - POE voltage measurement, PING test , IP address scan, port flashing etc

29 - Audio in /out

30 - LED lamp, calculators, music players and other application tools

31 - Support customers self update software

32 - Lithium Ion Polymer Battery, working time lasts 8 hours

Company Contact:

• Posted By: Guangzhou Wanglu Teachnology Co.,Ltd

• Phone: 8618816894187

• Address: 5/F,No.3 building.He Guang Wu Heng road,Shang She, Guangzhou , China

• Email:

• Business Description: Wanglu Technology Co., Ltd is a prefossional manufacture, which specialized in research, development, producing and marketing in the field of cctv tester.
