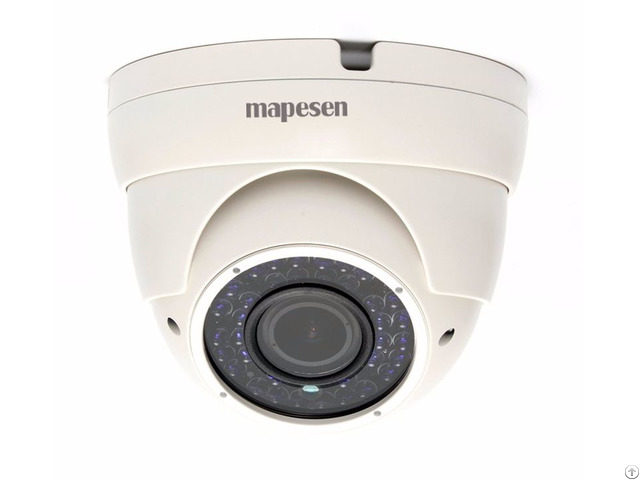

1080p 4 In 1 Smart Ir Metal Dome Varifocal Camera - China

Model No.

M9AH210 M9AH240

Camera

Image Sensor 1/2.7" CMOS Image Sensor 1/2.9" CMOS Image Sensor

Resolution 1080P@25/30fps

Effective Pixels 1920(H)×1080(V) 1936(H) x 1096(V)

Video Standard PAL/NTSC

Synchronization Internal

Day & Night mode External Control(default)/Auto /(B/W )/Color(OSD Switch)

WDR Digital WDR

Min.

Illumination 0.001Lux@(F1.2, AGC ON), 0LUX with IR

S/N Ratio ≥48dB(AGC OFF) ≥46dB(AGC OFF)

Electronic Shutter AUTO/ 1/50(1/60)-1/100, 000sec

White Balance Auto

AGC ON/OFF

BLC Default OFF ( AREA Adjustable)

DNR 3D DNR, Multi-Levels Adjustable 2D/3D DNR, Multi-Levels Adjustable

Language English/ Simplified Chinese/Traditional Chinese /German/French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish

OSD Menu OSD Menu, Control up the coaxial cable (UTC)

Video Output AHD/TVI/CVI-1080P, CVBS -960H Can Be Switched

Sens-up N/A Support

IR Distance 30M

IR Led 24 Leds

Other Defog, Motion Detection, Privacy Mask, Mirror, Flip

LENS

Focal Length 2.8-12mm

Lens Mount M12

General

Type Indoor Metal Bullet

Waterproof Level IP66

Power Supply 12 V DC±10%

Power Consumption 3.6W/5W(IR ON)

Operating Temp.

-20 °C to +50 °C (- 14 °F to 122 °F )

Storage Temp.

-40 °C to +60 °C ( -40 °F to 140 °F )
