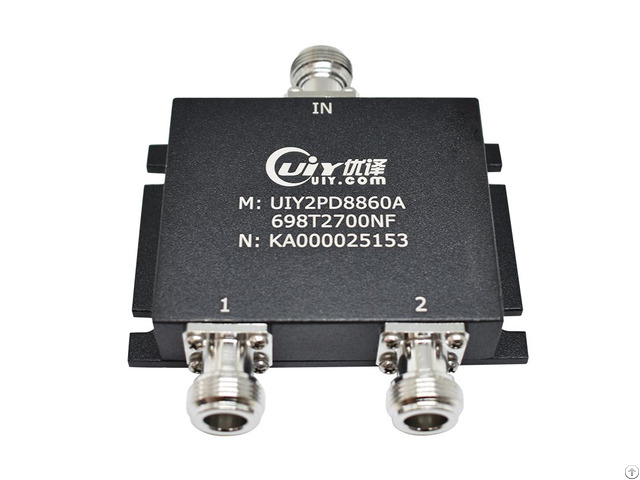

Uhf Band 698 2700mhz Rf 2 Way Power Divider Splitter High Isolation 20db - China
price: 28.00 Dollar US$
Model Number: UIY2PD8860A698T270 0NF
Frequency Range: 698~2700MHz
Insertion Loss: 0.5dB(split 3dB)
Isolation: 20dB
VSWR: 1.25
Phase Unbalance: ±5˚
Amplitude Unbalance: ±0.4dB
Forward Power: 50W
Reverse Power: 2W
Connector Type: N-F
Temperature: -40~+85°C
Dimension: 88*60*21mm
Military, space and commercial applications.
Electronic Musical Instrument Public Address System Radio Set Biomedical Instrumentation Optical Communication Technology Wireless Infrastructure Microwave Subsystems 2G 3G 4G 5G GSM CDMA LTE NR
Company Contact:
- Posted By: UIY Inc.
- Phone: +8675583748888
- Address: No. 8, lane 1, Xintun East Zone, Longgang District, 518172, Shenzhen , Guangdong Province, China
- Email:
- Website: https://www.uiy.com/
Published date: March 2, 2023
- Business Description: Professional Radio Frequency (RF) / Microwave Device Supplier
Professionally customized Radio Frequency (RF) / Microwave Components Manufacture.
UIY Inc.
was established in 2003 in Shenzhen, China, with the registered capital of 200 million yuan (about 32 million dollars).
It is an integrated enterprise, which includes research, production, marketing and service for the civilian and military microwave communications device.
The products are sold all over the world.
Product catalog:
Isolator / Circulator
Filter / Duplexer / Triplexer
Power Divider / Splitter
Hybrid Combiner / Directional Coupler
Coaxial Termination / Attenuator
Waveguide to Coaxial Adapter
Tx & Rx Multicoupler
Our products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system.
We are committed to providing our customers with high-quality products for a long time.
