Yjlhvs2 Aluminum Alloy Cable - China

Voltage

0.6KV35KV Construction

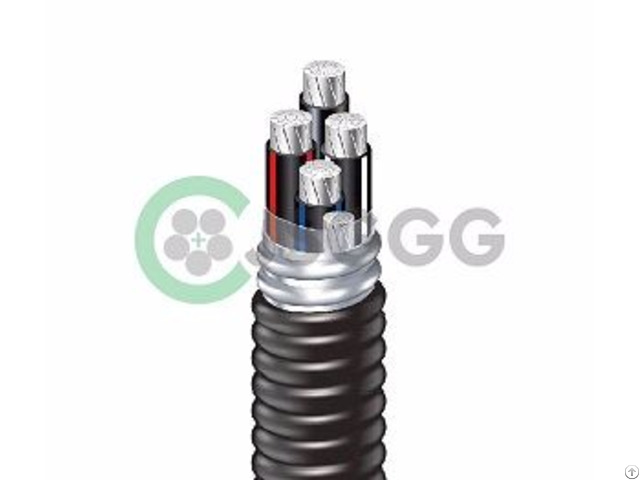

Sino-cables YJLHVS2 type is constructed with AA-8000 series aluminum alloy, compact stranded conductor.

The cable consists of one, two, three or four insulated phase-identified conductors plus an insulated grounding conductor inside interlocked aluminum alloy armor.

The entire assembly is covered with a PVC jacket for added durability and protection.

Standard

GB/T 12706; GB/T 31840; IEC60502, or other standards required by customers.

Features

1 - the operating temperature: -40℃90℃, Conductor insulation is free of harmful heavy metals in compliance with RoHS.

2 - good bendability, high elongation and flexibility, low spring-back, excellent properties of creep resistance, anti-corrosion and anti-oxidant, stable connection, sunlight resistant.

3 - fire resistant as NH, fire retardant as ZR, low smoke halogen free as WDZ, or other requirements by customers.

4 - Bending radius is only 7 times of the outer diameter of the cable and lightweight, which makes installation easier.

5 - Quick, easy one-step installation designed to save time, money, and energy, YJLHVS2 type AA8000 aluminum alloy cable replaces copper power cable overwhelmingly.

Applications

1 - Sino-cables YJLHVS2 type can be applied to Branch, feeder and service power distribution under high ambient temperature in commercial, industrial, institutional, and multi-residential buildings.

2 - YJLHVS2 is also suitable for direct burial applications, installation in concrete and where exposed to cinder fills, strong chlorides, caustic alkalis, or vapors of chlorine or of hydrochloric acids.

3 - designed for both above-ground and underground applications in dry or wet locations; Power, lighting, control, and signal circuits；Fished or embedded in plaster；Concealed or exposed installations；as aerial cable on a messenger；Installation in cable tray and approved raceways.

4 - Class I Div.

2, Class II Div 2, & Class III Div.

1 Hazardous Location.
