Wide Temperature Dg21106 - China
price: contact company for price

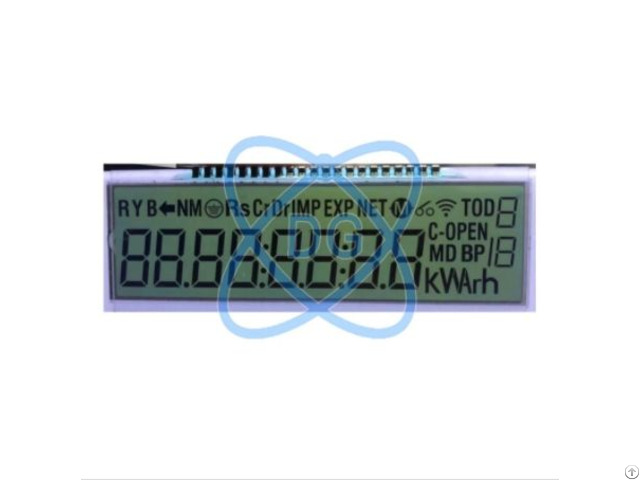

Wide temperature DG21106
Product Usage: Electricity meter panel
Power Consumption Characteristics: Ultra-low power consumption
LCD Product Type: STN
Perspective Features: Wide Angle of view
Temperature Characteristic: Wide temperature
Polarizer Type: Transmissive DG21106 energy meter lcd display
1 - Boundary Dimension: 71.0*(25.2+21.2)mm
2 - Strong Viewing Direction: 6 o’clock
3 - V-OP: 3.0V±0.15V
4 - Drive Method: 1/8 DUTY; 1/3 BIAS
5 - Operating Temperature: -20℃~75℃
6 - Storage Temperature: -30℃~80℃
7 - Polarizer: Transmissive/Positive(UV)
8 - Display Type: STN YELLOW/GREEN
9 - Penetration Frequency: 64Hz~128Hz
10 - Product Usage: Electricity Meter Panel
Custom LCD Panel: According to customer’s needs
LCD Model TN, HTN, STN(Gray, Teal, Blue), VA
Polarizer Reflection, Transmissive, Positive
Display Mode Positive Display
Negative Display
Boundary Dimension The Large Glass: Length*Width(mm)
The Small Glass: Length*Width(mm)
Visual Size Length*Width, (mm)
Temperature Operating Temperature(℃)
Storage Temperature(℃)
V-OP 3V, 3.3V, 5V
Drive Method 1/4DUTY; 1/3BAIS
Connection Type Metal PIN, Conductive Strip, FPC
PIN Number, PIN Length, PIN Spacing
Strong Viewing Direction 6: 00, 12: 00, 3: 00, 9: 00
ITO Thickness 0.55mm, 0.7mm, 1.1mm
Seal/Printing ● Yes or No
● Color (Red, Yellow, Green, Blue)
Our company specializes in the production and design of segment code LCD screen and drive module, with 36 years of experience in the design and production of segment code LCD screen, we can provide you with good design suggestions for your products, our products are of good quality, low mold cost, excellent price, large quantity and more preferential, and we promise to provide after-sales service.
Have any demand, we will try to meet you, look forward to serving you.
We are custom lcd display manufacturer.
Company Contact:
- Posted By: Dianguang Electronics Co., Ltd.
- Phone: 18931993788
- Address: 5/F Building B-2, Guanggu Science and Technology Park NO. 99 Yuyuan Street, Luquan Zone, Shijiazhuang , Hebei , China
- Email:
- Website: http://www.dgdz-lcd.com/
Published date: April 19, 2023
- Business Description: Dianguang Electronics Co., Ltd. was established in 1986 - The company is located in Shijiazhuang, the capital of Hebei Province, which is one hour away from the capital Beijing.
It is specifically located in the Optical Valley Science and Technology Park of Luquan Economic Development Zone, which is a hundred billion electronic information industry cluster.
It is an early Sino-foreign joint venture under the Hebei Liquid Crystal Display Development Co., LTD. Besides, it is one of the early professional manufacturers of liquid crystal display (LCD) module (LCM) in China.
Over the years, with the best pursuit of customer satisfaction and strong investment in technology and quality, Dianguang has created a new situation of technical cooperation and transaction with many well-known brand enterprises.
