Wide Input Non Isolated And Regulated Single Output Linear Regulators - China

Wide Input Non-Isolated & Regulated Single Output linear regulators.

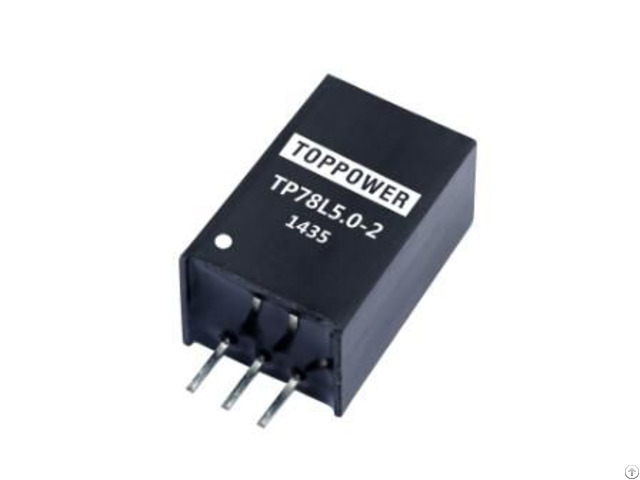

TP78XX-2 series switching regulators are ideal replacement for TP78xx linear regulators and LDOs.

The efficiency of up to 92% means that very little energy is wasted as heat so there is no need for any heat sinks with their additional space and mounting costs.

They are widely used in industrial control, instrumentation, and electric power applications.

Part Number Input Voltage (VDC) Output Efficiency(%) Nominal Range Voltage(VDC) Current(mA) Vin (Min) Vin(Max)

TP781.5-2 12 4.75~18 1.5 2000 79 76

TP781.8-2 12 4.75~18 1.8 2000 81 79

TP782.5-2 12 4.75~18 2.5 2000 85 83

TP783.3-2 12 4.75~18 3.3 2000 87 86

TP785.0-2 12 7-18 5.0 2000 91 88

TP786.5-2 12 8.5-18 6.5 2000 92 91

Company Contact:

• Posted By: TOPPOWER

• Phone: 862062162688-809

• Address: Building No.3 ,Rui Fa Road No.15,, Guangzhou , Guangdong , China

• Email:

• Website: https://en.gztoppower.com

• Business Description: Toppower is a professional manufacturing enterprise of DC DC converters.

  We focus on miniature DC DC converters researches, produces and markets,

  Our products have been used in many fields; such as: Industrial Control

  System, Power system, Apparatus and Instrument, Medical facilities, Rail

  transit system, Telecommunication Equipment, Security and Protection

  Equipment and Military Industrial System etc.

  Toppower owns an outstanding researching team.

  The products are 100% inspected and tested automatically by the advanced testing equipment.

  The unique product design, manufacturing process and equipment make our products with high efficiency and very good reliabilities.

  All DC DC converters are made with high quality spare parts and UL 94V 0 package material from the international prestigious suppliers.

  As well, the products meet ROHS requirement and covers 40+ series with thousands of variants from 1 to 50W for your choice.

  Our team targets to support you with professional products and service.

  We also have stocks for the popular variants so as to meet your emergency needs on time.

  we,TOPPOWER can produce:

  0.1W-400W DC-DC converters,1W-30W AC-DC converters,(SIP/DIP/SMD)

  15W-1200W Enclosed /Open frame/DIN RAIL type AC-DC Switching Power supply,

  TOPPOWER quality : ISO9001: 2015, IATF16949: 2016

  Guangzhou Top Power electronics Technology Co., Ltd
