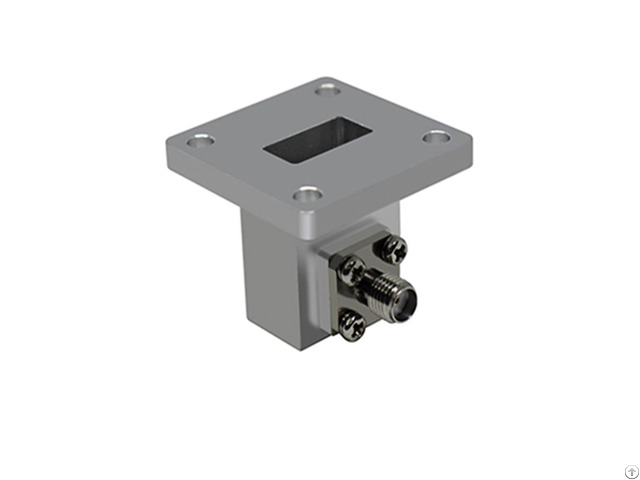

Waveguide To Coaxial Adapter Wr62 11 9 18 0ghz Low Insertion Loss - China
price: 100.00 Dollar US$
Model Number: UIYWTCWR62A119T18SF
Frequency Range: 11.9~18.0GHz
Insertion Loss: 0.2
VSWR: 1.15
Connector Type(Waveguide): WR62(BJ14 0)
Connector Type(Coaxial): SMA-F
CW Power: 50W
Peak Power: 1Kw
Temperature: - 55~+85℃
High RF performance, ultra-competitive price.
Military, space and commercial applications.
Custom design available upon request.
Guaranteed for one year standard.
Company Contact:
- Posted By: UIY Inc.
- Phone: +8675583748888
- Address: No. 8, lane 1, Xintun East Zone, Longgang District, 518172, Shenzhen , Guangdong Province, China
- Email:
- Website: https://www.uiy.com/
Published date: April 17, 2022
- Business Description: Professional Radio Frequency (RF) / Microwave Device Supplier
Professionally customized Radio Frequency (RF) / Microwave Components Manufacture.
UIY Inc.
was established in 2003 in Shenzhen, China, with the registered capital of 200 million yuan (about 32 million dollars).
It is an integrated enterprise, which includes research, production, marketing and service for the civilian and military microwave communications device.
The products are sold all over the world.
Product catalog:
Isolator / Circulator
Filter / Duplexer / Triplexer
Power Divider / Splitter
Hybrid Combiner / Directional Coupler
Coaxial Termination / Attenuator
Waveguide to Coaxial Adapter
Tx & Rx Multicoupler
Our products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system.
We are committed to providing our customers with high-quality products for a long time.
