Wall Mounted Flush Electrical Enclosure Roll Forming Machine Production Line - China

Superda Metal roll forming machine electrical enclosure production line for flush mounting box, illumination distribuiton box, wall mounted enclosure, flush econo boards.

Metal roll forming machine production line making illumination wall mounted box dimension.

Push bottom box length is adjustable from 200-600mm, the width is 190mm, and the depth is 80mm.

The actual cross-section of the product provided by the customer.

1, Flush mounted box production line technical parameters No.

ITEM PARAMETER REMARK

1 MATERIAL Type Cold-rolled strip steel, galvanized sheet T.

(mm) 0.5-0.7mm Yield Strength (Mpa) Q235 2 Forming product Width Customized 3 Forming speed (m/min) 4-8m Including hole

4 Forming main power (KW) 7.5 KW FYR

5 Hydraulic power (KW) 18.5 KW FYR

6 Bending power (KW) 3 KW FYR

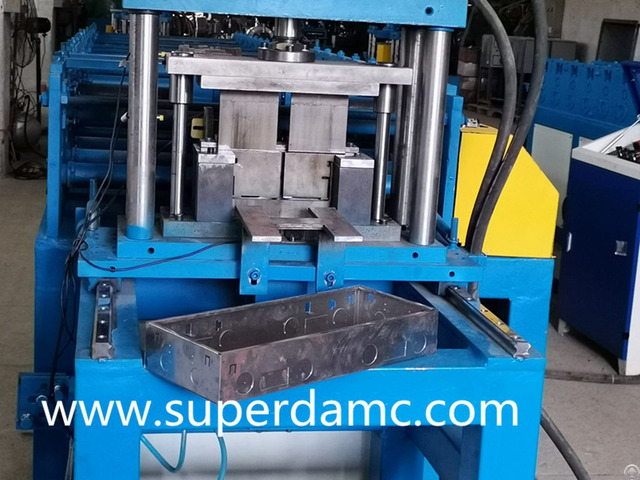

7 Voltage AC380V, 50Hz, 3P Metal roll forming machine production line process Uncoiler →Straightening→servo feeder→Hydraulic press breach device → Guide device → roll forming machine → hydraulic punch →shear device (including knife)→ finished product rack Steel flush mount enclosure roll Forming machine list Explaination This production line is equipment for production flush wall mount enclosure.

The strip coil to be processed is manually placed on the uncoiler, and then corrected and tensioned.

After leveling, it enters the hydraulic pre-punching and punching notch, and is sent to the forming machine by the guide device to form.

Under the frictional damping action of the forming roller and pressure roller, after entering the shearing section at a linear speed of 0-10m, the product is cut off as required, and then manually packed away.
