Vertical Si 46004 F Rj45 Magnetic Jack Connector - China

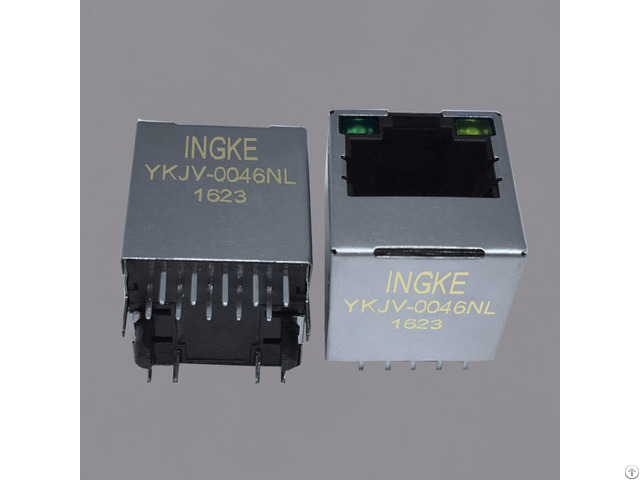

Ingke YKJV-0046NL 100% cross Vertical SI-46004-F RJ45 Magnetic Jack Connector Part Number : SI-46004-F Made in China: YKJV-0046NL Original Manufacturer: Ingke Technology Supply Ability: 5500K-PCS/Month Packaging : Tray Connector Type: RJ45 Number of Ports : 1 Number of Rows : 1 Applications : 10/100 Base-T, AutoMDIX Mounting Type : Through Hole Orientation: Vertical Termination : Solder LED Color: Yellow - Green Number of Cores per Jack : 4 Shielding : Shielded Features: Board Lock Tab Direction : User Selectable Contact Material : Copper Alloy Contact Finish : Gold Operating Temperature : -40℃~85℃ Contact Finish Thickness : 30µin (0.76µm) Shield Material : Copper Alloy Housing Material : Thermoplastic Manufacturer: Ingke Technology Co., Ltd

INGKE can provide 3D model for engineers' design

Our service: 1).

Free sample is available! 2).

OEM & ODM orders are welcomed.

3).

We offer after-sale service for 8 years.

Our Advantage: 1).

High-quality, OEM factory for RJ45 Connector more than 10 years.

2).

Cost reduction, lead time within 1 week, FREE samples.

3).

After sales services 24*7 to help you solve any kind of problems Ingke Technology Mass production of the following models;

08B1-1XX1-03-F 0817-1X1T-21-F 08B0-1C1T-06-F 08B0-1B1T-36-F 08B0-1G1T-36-F 08B0-1XX1-03-F 08B0-1D1T-03-F 08B0-1X1T-01-F 0826-1AX1-47-F C893-1DX1-E5 V891-1XX1-A1 0821-1C1T-43-F L830-1J1T-43 0875-1B1T-P1 0826-1G1T-32-F 0826-1X1T-57-F L829-1G1T-43 0826-1G1T-63-F L826-1X1T-43-F 0826-1M1T-43-F 0826-1A1T-43-F 0826-1B1T-43-F 0826-1D1T-43-F 0826-1L1T-43-F 0826-1XX1-43-F V895-1001-AW V890-1RX1-A1 L830-1J1T-47 0821-1G1T-43-F 0821-1D1T-43-F 0826-1L1T-23-F 0826-1M1T-23-F 0826-1E1T-23-F 0826-1D1T-23-F 0826-1B1T-23-F 0826-1Z1T-23-F L826-1M1T-23-F 0826-1XX1-46-F C893-1RX1-E3 0821-1B1T-43-F 0843-2B1T-70-F 0816-1X1T-43-F 0816-1X1T-80-F L886-1G2T-BF G12-1JJT-038 0838-1X1T-W7 08B0-1G4T-36-F L835-1X1T-S7 0826-1X2T-43-F 08B1-1X4T-06-F

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: 86 (755) 3283-5625

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/2.5G/5G/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
