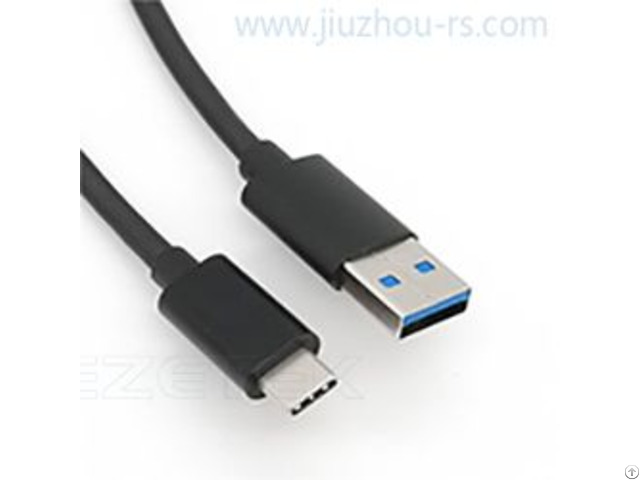

Usb3 0 A To Type C Cable With Pvc Mold 5 Gbps Speed 5v 3a - China

Copper HDMI2.0 A/M To HDMI A/M Cable (1)Product introduction: HDMI2.0V Cable with Ethernet, support 4K@60Hz 4: 4: 4, work at the 18 Gbps maximum bandwidth of the HDMI 2.0 specification, backwards compatible with previous HDMI standards.

HDMI 2.0 standard 19-pin, used for digital audio and video transfer；Backwards compatible with HDMI 1.1 to HDMI 1.4 ; 3D audio and video capabilities, audio and video synchronization, support HDCP; Support for 21: 9 ultra-wide screen display, the highest resolution 4K * 2K; Support for up to 32 channels in audio and sample rates up to 1536kHz; Plug and play, no additional drivers required.

( 2 ) Product Features: Pure copper for core wire + Tinned copper wire for drain wire, signal transmission is stable without attenuation;

gold-plated connector, not easy to rust;

With dust cap to protect the connector；

Plug: PVC Molding shell；

Triple-layer superior shielding (Al foil for each twist pairs+overall Al foil+Braid)prevent from EMI / RFI.

Multi-length available for choosing.

(3)Product Parameters: Model ：HDMI AM-AM Cable HDMI version：HDMI 2.0 Connector：gold plated Wire：Pure copper for core wire + Tinned copper wire for drain wire

Plug ：PVC injection mould Wire Gauge：30 AWG

Shielding：Aluminum foil+braid Working temp：-20°C-60°C

Jacket：Environment PVC Support：4K@60HZ, 3D, ethernet, audio return channel

Certification：UL/ROS H/CE, HDMI ADAPTER Transmit rate：18 Gbps

Packaging：Polybag, recyclable carton or blister pack Length：0.5-5m(4k*2k/60h z)

HS Code：8544421100 Origin：Shenzhen, China ( 4 ) Electrical Test: 100% open and short test

Voltage: 300V DC, 5MΩ/10ms

Insulation resistance: 10MΩ at least

Contact resistance: 2Ω at least

Working temperature: -20 to 60 degree Celsius

JEZETEK CABLE UL NO.

: E351035

UL Standard: AWM 20276

Flame Rated: VW-1 (5) Wide application： HDMI 2.0 cable allows you to connect your computer, Blu-ray player, DVD, HD set-top box, game console(like PS4), camcorder, amplifier equipment or other HDMI-compatible device with a television set, LCD monitor, display, projector.

a)Mirror mode: display director function.

Show same pictures of display device and output device.

Used in the projector, speech, game interaction, cinema, online game entertainment, online game broadcast, etc.

b)Extended mode: Internet, video, multi-task split screen, and meet different needs.

c)Video entertainment: by connecting TV box, PS4, enjoy big screen entertainment and games.

It combines HD audio and video into a single cable to meet home theater needs.

Even at home, you can also enjoy high-definition visual experience! (6)Variants and Comparisons： a)With different plugs, PVC mold or bi-color mold b) With different-color sheath and sleeve combinations c) With different material core wire, solid copper or stranded copper, pure copper or tinned copper, also AWG of core wire depending special requirement from 22AWG-32AWG.

d) different packing：Polybag, recyclable carton or blister pack (7)Why Us: a) As A State-owned Enterprise With Long History In Wire and Cable Industry Jiuzhou Group (JEZETEK) was established in 1958 as a stated-owned enterprise, and started to entry in wire and cable industry as early as 1970 - b)With Strong R&D Capability of Wire and Cable, Independent Laboratory and Testing Equipment for Quality Control c)Have Owned Lots of Honors till it established d ) The company has successfully passed certification of SGS, ISO9001: 2000, ISO14001: 2015 and OHSAS 18001: 2007 - And its products have obtained RoHS, CE, UL certificates.

Company Contact:

• Posted By: ShenZhen JiuZhou RongSheng Technology Ltd.

• Phone: 13008656456

• Address: No.26 Hongji Road, Longxin Community, Longgang District, Shenzhen, China, GuangDong , 粤 , China

• Email:

• Website: https://www.jiuzhou-rs.com/

• Business Description: Jiuzhou Rongsheng is a high-tech enterprise integrating production, sales and services of audio&video cable（such as HDMI/VGA/DP/DVI/RCA cable）, networking cable，USB cable, fiber optic cable，coaxial cable，Type-C docking station，USB rechargeable battery and other related consumer products.
