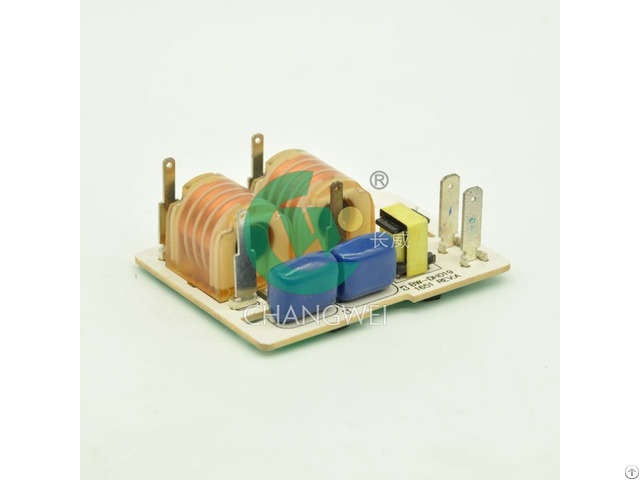

Two Four Spark Igniter Bw Dh019 - China

Basic Information This controller of which rated operating voltage is 1.5V can control two sparks by one single switch.

The sparking is on with switch being connected and the sparking is off with switch being unconnected.

spark igniter Baiwei Functional Description

HV output is controlled by the sparking switch.

HV output is on with switch being connected.

Technical Parameter

No.

Item Specification

1 Rated operating voltage 1.5VDC

2 Operating voltage range 1.0—1.6VDC

3 Current ≤380mA(1.6V)

4 Sparking rate ≥3Hz(1.6V)

5 Sparking gap ≥6mm

6 Sparking energy ＞1.0mJ

7 Sparking cycle ≤400ms

8 Sparking pulse width ≥12μs

9 HV output ≥(20-24)kV@20pF

10 Operating temperature -20℃—+70℃

11 Storage temperature -20℃—+80℃

12 Operating humidity ＜95%

13 Operating life ＞100000 cycles
