Transparent Glass Led Display P3 91 7 81 For Indoor Shop With 1000 500mm - China

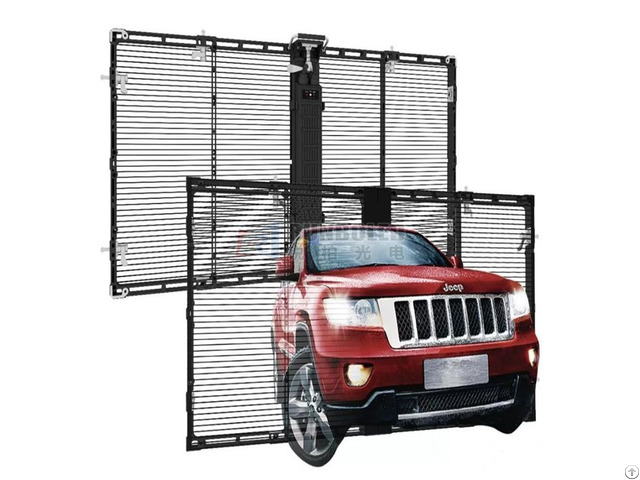

Transparent Glass LED Display P3.91-7.81 for Indoor Shop with 1000*500mm

Transparent Glass LED Display Supplier

Transparent led display, with it’s high transparent rate up to 60%, it always fixed behind the glass window to show led digital advertisement in the indoor shop or stock.

With it’s high refresh rate up to 3840Hz and it’s high brightness up to 3000-5000nits, people can view it’s videos or images through outside.

Features of our indoor digital led wall:

1 - Super thin & light weight with die-casting aluminum cabinet, one person with one hand can handle and installation.

Save shipping cost and labor cost.

2 - High transparency rate up to 60%, show perfect stage effect.

3 - High heat dissipation without fans.

4 - Integrated design with power supply, cables, back cover together

5 - Fast lock design, easy install and assemble.

6 - High brightness can up to 3000-5000nits with different

7 - Can be fixed installation or rental for backdrop.

8 - Application: suit for indoor fixed behind the glass window of the facade building or car store

9 - With fast lock design and die-casting aluminum cabinet, mask to protect the led lamp, also suit for the indoor stage events, especially for concert events.

Specification of Glass Commercial Transparent LED Screen: Parameter Technical of SMD Indoor Window Transparent LED Display P3.91-7.81

Item Model Parameter

LED Module Info.

Pixel Pitch P3.91 Indoor Fixed LED Video Wall LED Lamp SMD1921 IC Driver MY9866/SM16218 Color Temperature 6500-9300K Drive Mode 1/16 Scan

LED Cabinet Info.

Cabinet Size 1000*500*66mm Cabinet Resolution 256*64dots Cabinet Material Die-casting Aluminum Cabinet Contrast Ratio 1: 1600 Cabinet Net Weight 5.5kg/pc IP Grade IP30 Transparent Rate 60% Heat Dissipation structure-enhanced, natural convection

LED Display Info.

Best Viewing Distance 4m-20m Viewing Angle H: 140°/ V: 120° Pixel Density 32768dots/㎡ Brightness 3000-5000nits Max.

Power Consumption 600-800W/㎡ Ave.

Power Consumption 200-250W/㎡ Refresh Rate 1920Hz-3840H, can be adjusted

Control System Info.

Operating System WIN98/2000/NT/XP Control Method Synchronous display with control PC by DVI or Asynchronous with Wifi/4G/USB Control System Linsn, Nova-star, Colorlight or as you required Display Content Video, DVD, VCD, TV, picture, cartoon, graphics, texts.

etc.

Frame Frequency 50Hz or 60Hz Transmission Distance Multi mode fiber <500m, single mode fiber <30km, internet cable<100m

Operation Info.

Working Temperature -20℃--+60℃ Storage Temperature -55℃--+100℃ Input Voltage AC110V/AC220V Humidity Environment 10%-95% Lifespan 100, 000hours MTBF 5, 0000hours Certificate CE, CCC, FCC, ROHS, ISO9001
