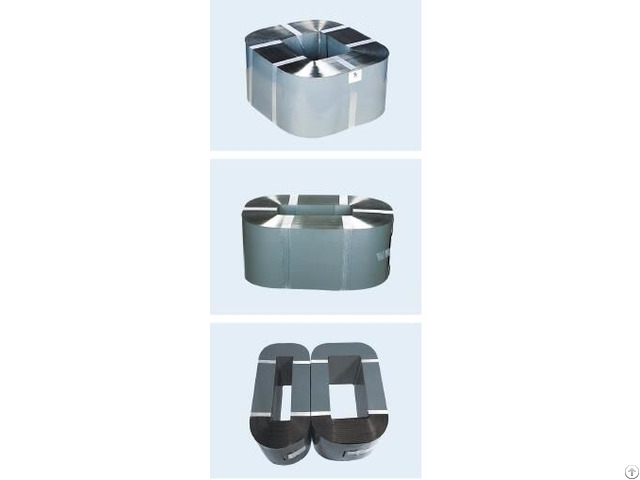

Three Phase Five Column Amorphous Core - China
price: 3.50 Dollar US$
1 Introduction Applicable for Dy Group transformers ((such as Dyn11).
The dimension design retain the existing technics in the market, satisfy customers in assembly, equipment and capacity.
Its joint designing adopts more advanced distributed structure technic.
2 Feature Compared to silicon steel transformer with same capacity and voltage, it can approximately reduce the no-load loss by 70%-80%, decrease no-load current by 75%, effectively save energy, greatly improve productivity by the easy and fast assembly.
3 Specification Amorphous
Type Core for Oil immersed transformer Core for dry-type transformer 30-80KVA 100KVA A＜800mm A≥800mm
142mm 86% 88% 88% 86%
170mm 86% 87% 87% 86%
213mm 86% 86% 86% 86% 4 Comparision No-load loss VS Excitation
Company Contact:
- Phone: +8618576650379
- Address: Northeast cornner of Beijing Road and Yudu street intersection, industrial agglomeration area in Den, Zhengzhou , Henan , China
- Email:
- Website: http://www.zyfeijing.com
Published date: June 6, 2017
- Business Description: Founded in 2010, located in Henan, Zhongyue Amorphous Corp.
is a professional Hi-tech amorphous company engaged in R&D, manufacture, and distribution.
Currently, main products include amorphous and nanocrystalline ribbons, amorphous and nanocrystalline cores, amorphous alloy transformers, current transformers, invertors, reactors, inductors and and so on.
