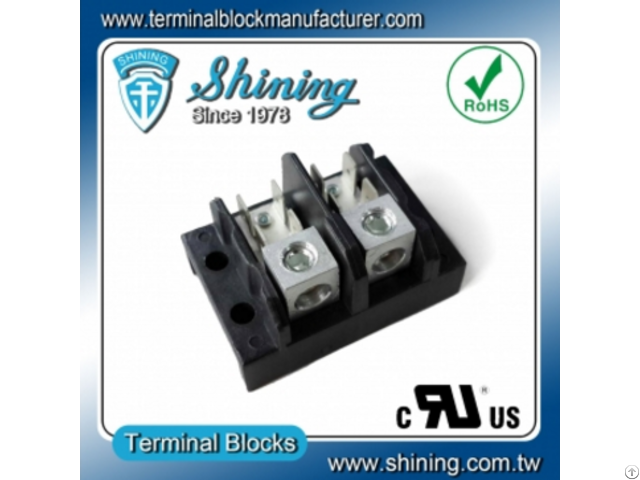

Tgp 050 02a 600v 50a 2 Pole Power Terminal Block - Taiwan

1 - Rated Voltage: 600V

2 - Rated Current: 50A

3 - Pole: 2 Pole

4 - Screw: Steel.

Hexagon Socket Set Screw (M6-1.0).

Stainless Steel is Optional Parts

5 - With 4 Way Quick Connector per Pole.

(Input: 1 Way ; Output: 4 Way)

6 - Quick Connector Size: 6.35mm (1/4" Q.C. 4 Tab)

7 - Certificate: RoHS.

UL / cUL Approval

General Product Information

1 - Item number: TGP-050-02A

2 - Rating: 600V, 50A, 2 Poles

3 - Size: 50.0*37.0*32.5mm (L*W*H)

4 - Wire Size: Input: #16-6 AWG / Output: #20-14 AWG ; Input: 1.3-13.0mm2 / Output: 0.5-2.0mm2

5 - Screw Size: Hexagon Socket Set Screw, M6-1.0
