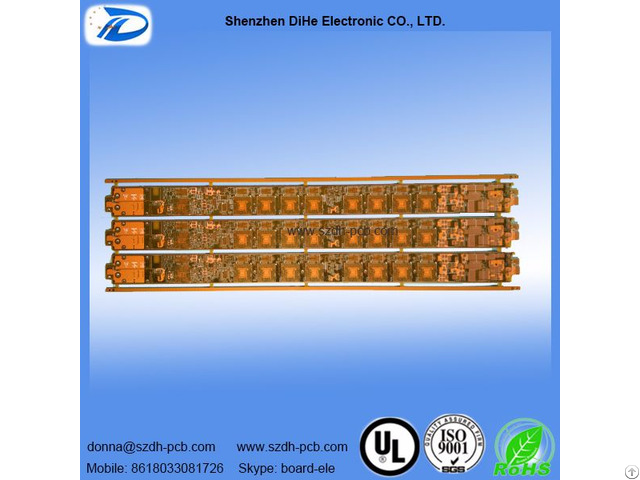

Ten Layers Multilayer Printed Circuit Board - China
price: 0.10 Dollar US$
10 layers
ENIG(Immersion gold)+gold finger finish
1oz copper 3.2mm thickness
yellow solder mask
UL, ISO9001, ROHS, ISO14001 compliance Rigid PCB Technical Capabilities Item Manufacture Capability Layers 1-20L Material Types FR-4, CEM-1, CEM-3, IMS, High TG, High Frequency, Halogen Free, Aluminum base, metal core base Max.
Panel Dimension 546mm*622mm Outline Tolerance ±0.10mm Board Thickness 0.20mm-5.0mm Board thickness Tolerance(t=0.8mm) ±8% Min.
Mechanical Drill Hole Size 0.15mm Min.
Laser Drill Hole Size 0.075mm Min.
track Width 0.0635mm(2.5mil) Min.
track Gap 0.0635mm(2.5mil) Surface treatment HASL(LF), Flash gold, ENIG, OSP (Lead free compatible), Carbon ink, Peelable S/M, Immersion Ag/Tin, Gold finger plating, ENIG+ Gold finger External Cu.
Thickness 35um-210um(1oz-6oz) Internal Cu.
Thickness 17um-175um(0.5oz-5oz) Drilling Bit Size(CNC) 0.10mm-5.95mm Finished Hole Dimension(CNC) 0.20mm-6.0mm Hole Tolerance(CNC) ±0.075mm/±0.05mm Hole Postion Tolerance(CNC) ±0.05mm Board Thickness : Min.
Hole Dimension 8: 1 Performance Test 100% electrical and electricity performance test Solder Mask LPI, green, black, white, red, blue, yellow Min Solder Mask Bridge 0.0635mm Thermal Shock Test 288℃, 10S, 3X Impedance Control Tolerance ±5%
Company Contact:
- Posted By: Shenzhen Dihe Electronic Co., Ltd.
- Phone: +8613480900911
- Address: No. 6, 8 Alley, FuHe Road west, GongHe, ShaJing, Shenzhen , GuangDong , China
- Email:
- Website: https://www.szdh-pcb.com
Published date: April 19, 2017
- Business Description: Multilayer PCB, Metal core PCB, fast PCB and middle-small batch PCB with multi-species, small batches, short delivery time and high level.
Our factory is with ISO9001, ISO14001, UL and ROHS certified.
All materials used are environmentally friendly and lead free.
We have advanced manufacturing equipments and skillful production and technical team staff.
Which make us better and better.
Now we can make PCB up to 20 layers, the Min.
mechanical drill hole is 0.15mm, the Min.
laser drill hole is 0.075mm, the min.
circuit width/ spacing is 0.0635mm/0.0635mm(2.5/2.5 mil).
We have rich experience in producing heavy copper PCB, metal core PCB, high frequency PCB, high TG PCB, high precision controlled impedance PCB, halogen free PCB and mixing plate PCB.
These products are widely used in communication, security, industrial power, medical equipment, aerospace, military, automotive electronics, power supply and computer area.
We are well recognized by customer due to reliable quality, good price, and fast delivery.
The product type are as follows:
Non-PTH single- and double-sided PCBs
Copper through-hole PCBs
Silver through-hole PCBs
Ultrathin ML (100μm/layer)
Plated through-hole PCBs
PCBs with blind vias
HDI PCBs
PCBs with thick copper
Multilayer PCBs, miscellaneous
Bondable PCBs
Metal core PCBs
Micro via PCBs
PCBs on aluminum substrates
HF PCBs
Impedance-controlled PCBs
Press-fit component PCBs
Ultrafine-line circuitry (< 50μm)
PCBs, other
PCBs
In order to meet all kinds of needs of customer, we also do some pcba(PCB Assembly), we produce pcb in our own factory, and source components for customer, then do assembly in SMT factory.
Therefore, if you have any interest about this part, a gerber and BOM are welcome.
